18.5 Inch LCD Panel Resolutiong 1920*1080 Brightness 1200nits LCMA-RX0185GB03-C120
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | High Brightness LCD Display | Panel Size | 18.5" |
|---|---|---|---|
| Resolution | 1920*1080 | Brightness | 1200 (Typ.) |
| Aspect Ratio | 16:9 | Active Area | 408.96*230.04mm (A.A) |
| Outline Dimension | 430.4*254.6*12.5mm | ||
| Highlight | 1920*1080 LCD Panel,1200nits LCD Panel,18.5 Inch LCD Panel |
||
Product Description

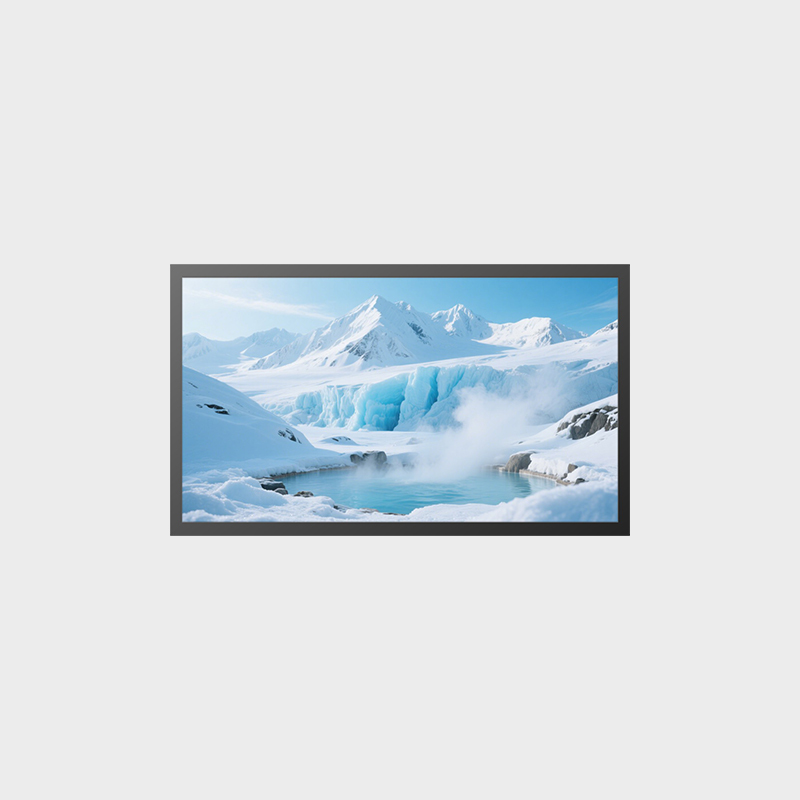

18.5 inch High Brirghtness LCD Display 1920*1080 LVDS 1200nits
Product Advantage ►
|
1. Brightness customization 700-5000cd/m2. |
Product Application ►
|
1.Bus Station Signage System. 2.Smart Charging Pile 3.Outdoor Electronic News Display. |
|||
 |
|
|
|
Specifications ►
LCMA-RX0185GB03-C120
| Brand | Rogin |
| Series | High Brightness LCD Display |
|
Panel Size(inch)
|
18.5 |
|
Model
|
LCMA-RX0185GB03-C100 |
|
Brightness
|
1200 |
|
Power Consumption (W)
|
27 |
|
Resolution
|
1920*1080 |
|
Active Area
|
408.96*230.04 |
|
Overall Size
|
430.4*254.6*12 |
|
Viewing Angle
|
89/89/89/89 |
|
Interface Definition
|
LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
|
Contrast Ratio
|
1200:1 |
|
Aspect Ratio
|
16:9 |
| Touch Panel | Without |
|
Operating Temperature
|
-30~80℃ |
