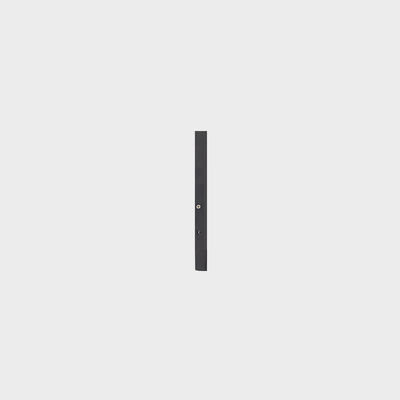

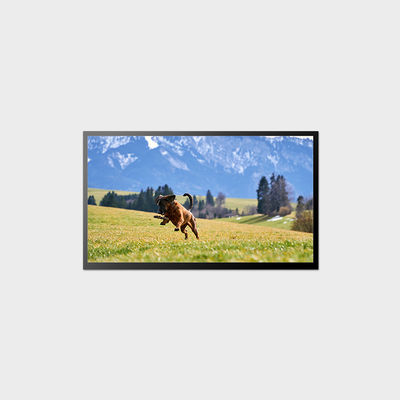

23.8 inch High Brightness LCD Display 58W 1920*1080 LVDS LCD Panel 1000nits

  • 23.8 inch High Brightness LCD Display 58W 1920*1080 LVDS LCD Panel 1000nits
  • 23.8 inch High Brightness LCD Display 58W 1920*1080 LVDS LCD Panel 1000nits
  • 23.8 inch High Brightness LCD Display 58W 1920*1080 LVDS LCD Panel 1000nits
Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0238GA01-C150
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T, L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 23.8 Inch High Brightness LCD Display Panel Size 23.8"
Resolution 1920*1080 Brightness 1500 (Typ.)
Operating Temperature 0~50℃ Active Area 527.04*296.46mm
Outline Dimension 557.2*326.6*17.5mm
Highlight

23.8 inch High Brightness LCD Display

,

High Brightness LCD Display 58w

,

LVDS LCD Panel 1000nits
Leave a Message
Product Description

23.8 inch High Brirghtness LCD Display 1920*1080 LVDS 1000nits

Product Advantage ►

1. Brightness customization 700-5000cd/m2.
2.Outdoor sunlight readable.
3. Low power consumption.
4.High uniformity up to 85% .
5. Long lifetime, 50K hours(Typ), up to 80K hours
6.Aluminium backlight structure with good heat dissipation.
7.Wide temperature range up to -30°C-80°C.
8.High shock resistance and high stability.

Product Application ►

1.Bus Station Signage Board.
2.Intelligent Charging Pile.
3.Outdoor Electronic News Reading Board.
4.Intelligent Express Cabinet.
5.Vending Machine.
6.Commercial Advertising Machine.
7.Attractions Information Inquiry Machine.
8.Community Information Board.
23.8 inch High Brightness LCD Display 58W 1920*1080 LVDS LCD Panel 1000nits 0 23.8 inch High Brightness LCD Display 58W 1920*1080 LVDS LCD Panel 1000nits 1 23.8 inch High Brightness LCD Display 58W 1920*1080 LVDS LCD Panel 1000nits 2 23.8 inch High Brightness LCD Display 58W 1920*1080 LVDS LCD Panel 1000nits 3

Specifications ►

LCMA-RX0238GA01-C150

  Brand   Rogin
  Series   High Brightness LCD Display
  Panel Size
   23.8 inch
  Model
   LCMA-RX0238GA01-C150
  Brightness
   1500
  Power Consumption
   58W
  Resolution
   1920*1080

  Active Area

   527.04*296.46mm
 Overall Size   557.2*326.6*17.5mm
  Viewing Angle
   89/89/89/89
  Interface Definition
   LVDS (2 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   3000:1
  Aspect Ratio
   16:9
  Touch Panel   Without
  Operating Temperature
   0~50℃



► Product catalog of high brightness LCD display.pdf...

Tags:

High Brightness LCD Screen

Outdoor LCD Advertising Display

High Brightness Advertising Display
