1920*860 Bar Type LCD Display 12 Inch LVDS 700nits Brightness For Commercial Signage
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Panel Size | 12" | Resolution | 1920*860 |
|---|---|---|---|
| Brightness | 700 (Typ.) | Aspect Ratio | 21:9 |
| Active Area | 278.2*124.63mm (A.A) | Outline Dimension | 291.7*144.9*12.6mm |
| Name | Bar Type LCD Display | ||
| Highlight | 1920*860 Bar Type LCD Display,Bar Type LCD Display 12 Inch,Commercial Signage 12 Inch LCD Display |
||
Product Description

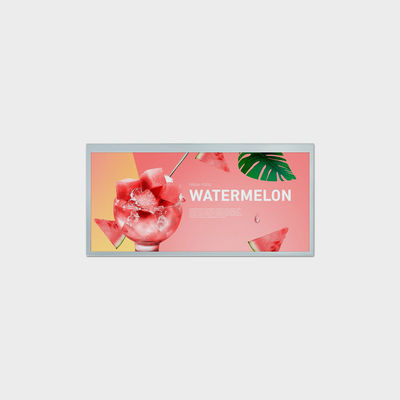

12 inch Bar Type LCD Display 1920*860 LVDS 700nits
Product Advantage ►
|
1. 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting). |
Product Application ►
1. Commercial signage : Advertising and Price Shelves.
2. Public transportation: Bill board for Bus/Metro and light rail.
3. Guidance board, Lift advertising board.
4. Financial services. Bank call notice board.
5. Name card.
6. Advertising board on taxi.
 |
|
|
|
Specifications ►
LCMA-RX0120GA01-C070
| Brand | Rogin |
| Series | Bar Type LCD Display |
|
Panel Size(inch)
|
12 |
|
Model
|
LCMA-RX0120GA01-C070 |
|
Brightness
|
700 |
|
Power Consumption (W)
|
8 |
|
Resolution
|
1920*860 |
|
Active Area
|
278.2*124.6 |
|
Overall Size
|
291.7*144.9*12.6 |
|
Viewing Angle
|
/ |
|
Interface Definition
|
LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
|
Contrast Ratio
|
1400:1 |
|
Aspect Ratio
|
21:9 |
| Touch Panel | Without |
|
Operating Temperature
|
-30~85℃ |
