12.3 inch Bar Type LCD Display 1024*255 LVDS 500 Nits Display Customized

12.3 inch Bar Type LCD Display 1024*255 LVDS 500 Nits Display Customized
12.3 inch Bar Type LCD Display 1024*255 LVDS 500 Nits Display Customized
12.3 inch Bar Type LCD Display 1024*255 LVDS 500 Nits Display Customized 12.3 inch Bar Type LCD Display 1024*255 LVDS 500 Nits Display Customized 12.3 inch Bar Type LCD Display 1024*255 LVDS 500 Nits Display Customized 12.3 inch Bar Type LCD Display 1024*255 LVDS 500 Nits Display Customized

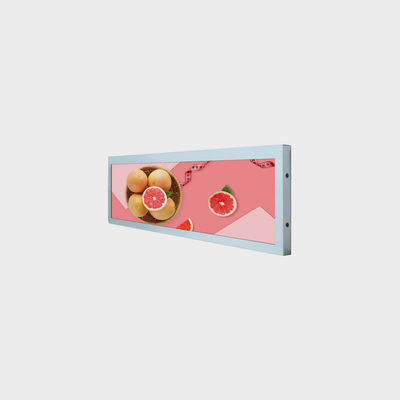

Large Image :  12.3 inch Bar Type LCD Display 1024*255 LVDS 500 Nits Display Customized

Product Details:
Place of Origin: Shenzhen
Brand Name: ROGIN
Model Number: LCMA-RX0123TB02-C050
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Price is negotiable.
Packaging Details: Cartons or wooden cases
Delivery Time: 6-8 weeks
Payment Terms: T/T, L/C
Supply Ability: Spot adequacy
Contact Now

12.3 inch Bar Type LCD Display 1024*255 LVDS 500 Nits Display Customized

Description
Panel Size: 12.3" Resolution: 1024*255
Brightness: 500 (Typ.) Operating Temp.: -20~70℃
Active Area: 304.13*76.03mm (A.A) Outline Dimension: 325.9*98.48*11.6mm
Name: Bar Type LCD Display
Highlight:

12.3 inch Bar Type LCD Display

,

Bar Type LCD Display 1024*255

,

LVDS 500 Nits Display

12.3 inch Bar Type LCD Display 1024*255 LVDS 500nits

Product Advantage ►

1. 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
2. Advanced cutting technology to ensure the yield and precision.
3. High reliability with same features as original panel.
4. High Anti-vibration.
5. Brightness can be customized (500-2500nit).
6. Long life time 50K hours(Typ), up to 80K hours.

Product Application ►

1. Commecial signage : Advertising and Price Shelves.
2. Public transportation: Bill board for Bus/Metro and light rail.
3. Guidance board, Lift advertising board.
4. Financial services. Bank call notice board.
5. Name card.
6. Advertising board on taxi.

12.3 inch Bar Type LCD Display 1024*255 LVDS 500 Nits Display Customized 0 12.3 inch Bar Type LCD Display 1024*255 LVDS 500 Nits Display Customized 1 12.3 inch Bar Type LCD Display 1024*255 LVDS 500 Nits Display Customized 2 12.3 inch Bar Type LCD Display 1024*255 LVDS 500 Nits Display Customized 3

Specifications ►

LCMA-RX0123TB02-C050

  Brand   Rogin
  Series   Bar Type LCD Display
  Panel Size
   12.3 inch
  Model
   LCMA-RX0123TB02-C050
  Brightness
   500
  Power Consumption (W)
   5.8
  Resolution
   1024*255
  Active Area
   304.13*76.03 mm
  Overall Size
   325.9*98.48*11.6 mm
  Viewing Angle
   /
  Interface Definition
   LVDS (2 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   1000:1
  Aspect Ratio
   4:0.99
  Touch Panel   Without
  Operating Temperature
   -20~70℃



► Product catalog of bar type LCD display.pdf
