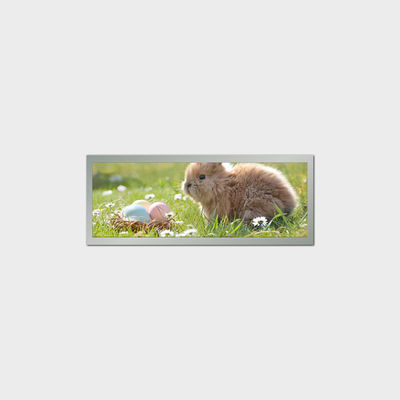

Bar Type 9 Inch LCD Display Screen 1280*448 LVDS 500nits For Public Transportation
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Panel Size | 9" | Resolution | 1280*448 |
|---|---|---|---|
| Brightness | 500 (Typ.) | Active Area | 216.96*76mm |
| Outline Dimension | 228*90*13mm | Name | Bar Type LCD Display |
| Highlight | Bar Type 9 Inch LCD Display,9 Inch LCD Display Screen,Public Transportation 9 Inch LCD Display |
||
Product Description
9 inch Bar Type LCD Display 1280*448 LVDS 500nits
Product Advantage ►
|
1. 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting). |
Product Application ►
1. Commecial signage : Advertising and Price Shelves.
2. Public transportation: Bill board for Bus/Metro and light rail.
3. Guidance board, Lift advertising board.
4. Financial services. Bank call notice board.
5. Name card.
6. Advertising board on taxi.
 |
|
|
|
Specifications ►
LCMA-RX090H-0100
| Brand | Rogin |
| Series | Bar Type LCD Display |
|
Panel Size(inch)
|
9 |
|
Model
|
LCMA-RX090H-0100 |
|
Brightness
|
500 |
|
Power Consumption (W)
|
2.52 |
|
Resolution
|
1280*448 |
|
Active Area
|
216.96*76mm |
|
Overall Size
|
228*90*13mm |
|
Viewing Angle
|
/ |
|
Interface Definition
|
LVDS (1 ch, 8-bit) |
| Backlight Type | WLED |
|
Contrast Ratio
|
1000:1 |
|
Aspect Ratio
|
|
| Touch Panel | Without |
|
Operating Temperature
|
-10~50℃ |
