19.2 inch Bar Type LCD Display 1920*360 LVDS 500nits
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Panel Size | 19.2" | Resolution | 1920*360 |
|---|---|---|---|
| Brightness | 500 (Typ.) | Operating Temp. | 0~50℃ |
| Active Area | 476.64*89.37mm | Outline Dimension | 496*109.2*11.88mm |
| Name | Bar Type LCD Display | ||
| Highlight | 19.2 inch Bar Type LCD Display |
||
Product Description

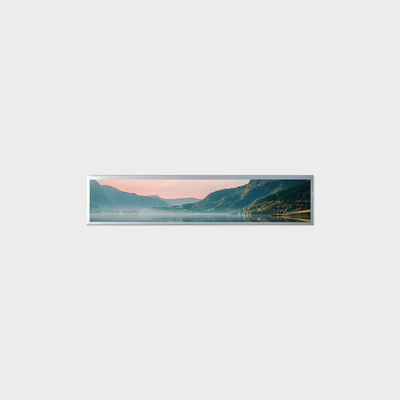

19.2 inch Bar Type LCD Display 1920*360 LVDS 500nits
Product Advantage ►
|
1. 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting). |
Product Application ►
1. Commecial signage : Advertising and Price Shelves.
2. Public transportation: Bill board for Bus/Metro and light rail.
3. Guidance board, Lift advertising board.
4. Financial services. Bank call notice board.
5. Name card.
6. Advertising board on taxi.
 |
|
|
|
Specifications ►
LCMA-RX0192TA02-C050
| Brand | Rogin |
| Series | Bar Type LCD Display |
|
Panel Size
|
19.2 inch |
|
Model
|
LCMA-RX0192TA02-C050 |
|
Brightness
|
500 |
|
Power Consumption
|
12W |
|
Resolution
|
1920*360 |
|
Active Area
|
476.64*89.37mm |
|
Overall Size
|
496*109.2*11.88mm |
|
Viewing Angle
|
/ |
|
Interface Definition
|
LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
|
Contrast Ratio
|
3000:1 |
|
Aspect Ratio
|
16:3 |
| Touch Panel | Without |
|
Operating Temperature
|
0~50 ℃ |
