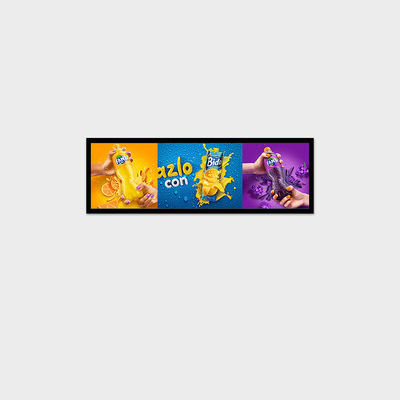

24.6 Inch Bar Type LCD Display Screen 1920*578 LVDS 700nits For Name Card

24.6 Inch Bar Type LCD Display Screen 1920*578 LVDS 700nits For Name Card
24.6 Inch Bar Type LCD Display Screen 1920*578 LVDS 700nits For Name Card

Large Image :  24.6 Inch Bar Type LCD Display Screen 1920*578 LVDS 700nits For Name Card

Product Details:
Place of Origin: Shenzhen
Brand Name: ROGIN
Model Number: LCMA-RX0246TA01-C070
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Price is negotiable.
Packaging Details: Cartons or wooden cases
Delivery Time: 6-8 weeks
Payment Terms: T/T, L/C
Supply Ability: Spot adequacy
Contact Now

24.6 Inch Bar Type LCD Display Screen 1920*578 LVDS 700nits For Name Card

Description
Name: Bar Type LCD Display Panel Size: 24.6"
Resolution: 1920*578 Brightness: 700 (Typ.)
Operating Temp.: 0~50℃ Active Area: 597.6*180mm
Outline Dimension: 623.5*208*13.57mm
Highlight:

24.6 Inch Bar Type LCD Display

,

Bar Type LCD Display 1920*578

,

Bar Type LCD Display Screen

24.6 inch Bar Type LCD Display 1920*578 LVDS 700nits

Product Advantage ►

1. 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
2. Advanced cutting technology to ensure the yield and precision.
3. High reliability with same features as original panel.
4. High Anti-vibration.
5. Brightness can be customized (500-2500nit).
6. Long life time 50K hours(Typ), up to 80K hours.

Product Application ►

1. Commecial signage : Advertising and Price Shelves.
2. Public transportation: Bill board for Bus/Metro and light rail.
3. Guidance board, Lift advertising board.
4. Financial services. Bank call notice board.
5. Name card.
6. Advertising board on taxi.

24.6 Inch Bar Type LCD Display Screen 1920*578 LVDS 700nits For Name Card 0 24.6 Inch Bar Type LCD Display Screen 1920*578 LVDS 700nits For Name Card 1 24.6 Inch Bar Type LCD Display Screen 1920*578 LVDS 700nits For Name Card 2 24.6 Inch Bar Type LCD Display Screen 1920*578 LVDS 700nits For Name Card 3

Specifications ►

LCMA-RX0246TA01-C070

  Brand   Rogin
  Series   Bar Type LCD Display
  Panel Size
   24.6 inch
  Model
   LCMA-RX0246TA01-C070
  Brightness
   700
  Power Consumption
   24W
  Resolution
  1920*578
  Active Area
   597.6*180mm
  Overall Size
   623.5*208*13.57mm
  Viewing Angle
   /
  Interface Definition
   LVDS (2 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   3000:1
  Aspect Ratio
   16:4.8
  Touch Panel   Without
  Operating Temperature
   0~50 ℃



► Product catalog of bar type LCD display.pdf
