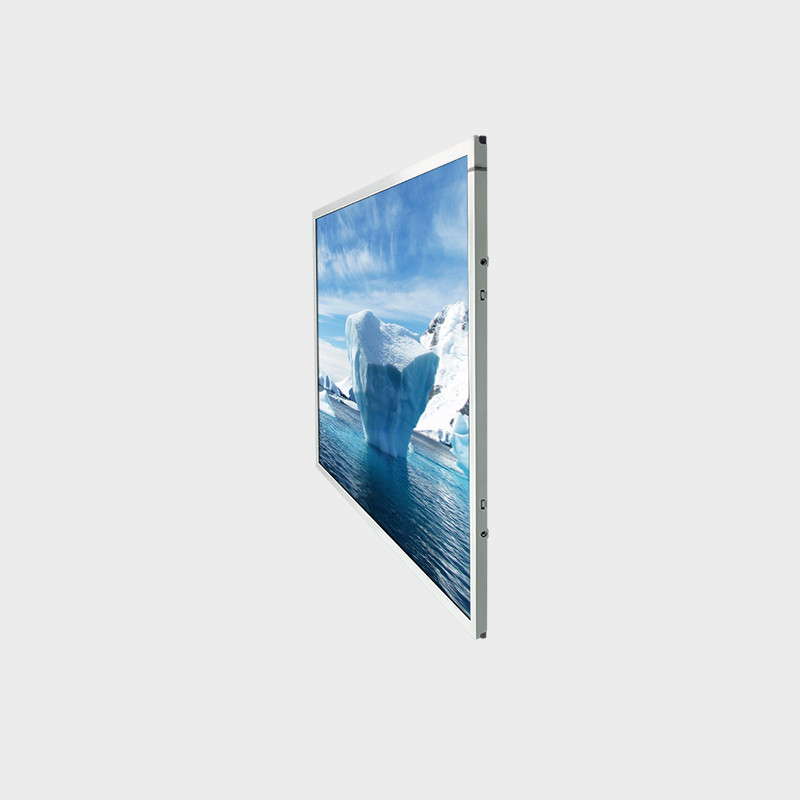

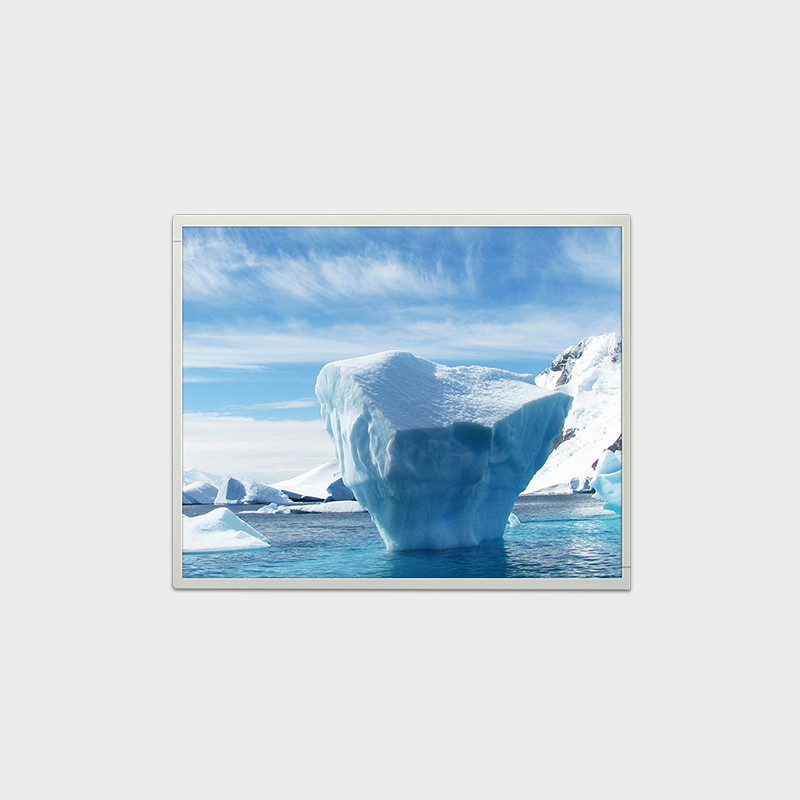

19 inch LCD display 500nits 1280*1024 LCMA-RX0190GB01-C050

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0190GB01-C050
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8weeks
Payment Terms T/T,L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Panel Size 19" Resolution 1280*1024
Brightness 500 (Typ.) Aspect Ratio 5:4
Active Area 374.784*299.82mm (A.A) Outline Dimension 396*324*10.4mm
Name High Brightness LCD Screen
Highlight

1280*1024 LCD display

,

500nits LCD display

,

19 inch LCD display

Leave a Message
Product Description

19 inch High Brirghtness LCD Display 1280*1024 LVDS 500nits

Product Feature ►


1. Brightness customization 700-5000cd/m2.
2.Outdoor sunlight readable.
3. Low power consumption.
4.High uniformity up to 85% .
5.Aluminium backlight structure with good heat dissipation.
6.Wide temperature range up to -30°C-80°C.
7.High shock resistance and high stability.

Product Application


1.Bus Stop Station.
2.Intelligent Charging Pile.
3.Outdoor Electronic News Reading Board.
4.Intelligent Express Cabinet.
5.Vending Machine.
6.Commercial Advertising Machine.
7.Attractions Information Inquiry Machine.
8.Community Information Board.

19 inch LCD display 500nits 1280*1024 LCMA-RX0190GB01-C050 0 19 inch LCD display 500nits 1280*1024 LCMA-RX0190GB01-C050 1 19 inch LCD display 500nits 1280*1024 LCMA-RX0190GB01-C050 2 19 inch LCD display 500nits 1280*1024 LCMA-RX0190GB01-C050 3

Specifications


LCMA-RX0190GB01-C050

  Brand   Rogin
  Series   High Brightness LCD Display
  Panel Size(inch)
  19
  Model
  LCMA-RX0190GB01-C050
  Brightness
  500
  Resolution
  1280*1024
  Active Area
  374.784*299.82
  Overall Size
  396*324*10.4
  Viewing Angle
  85/85/80/80
  Interface Definition
  LVDS (2 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
  1200:1
  Aspect Ratio
  5:4
  Touch Panel   Without
  Operating Temperature
  0~50℃
