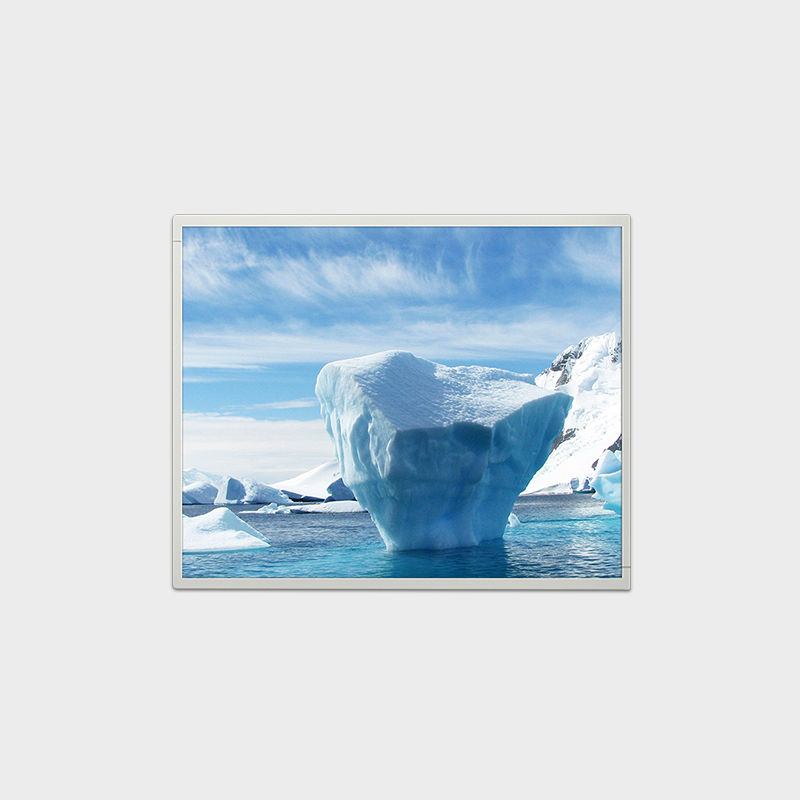

19 Inch LCD Display 1280*1024 LVDS 800nits Wide Temperature LCMA-RX0190GB03-C080

  • 19 Inch LCD Display 1280*1024 LVDS 800nits Wide Temperature LCMA-RX0190GB03-C080
Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0190GB03-C080
Minimum Order Quantity 5
Price Price is negotiable.
Delivery Time 6-8 weeks
Payment Terms T/T,L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 19 Inch LCD Display Panel Size 19"
Resolution 1280*1024 Brightness 800 (Typ.)
Aspect Ratio 5:4 Active Area 374.8*303mm
Outline Dimension 396*324*13.38mm
Leave a Message
Product Description

19 inch High Brirghtness LCD Display 1280*1024 LVDS 500nits

High Brirghtness LCD Product Advantage ►

1. Brightness customization 700-5000cd/m2.
2. Outdoor sunlight readable.
3. Low power consumption.
4. High uniformity up to 85% .
5. Long lifetime, 50K hours(Typ), up to 80K hours
6. Aluminium backlight structure with good heat dissipation.
7. Wide temperature range up to -30°C-80°C.
8. High shock resistance and high stability.

High Brirghtness LCD Product Application ►

1. Bus Station Signage Board.
2. Intelligent Charging Pile.
3.Outdoor Electronic News Reading Board.
4. Intelligent Express Cabinet.
5. Vending Machine.
6. Commercial Advertising Machine.
7. Attractions Information Inquiry Machine.
8. Community Information Board.
19 Inch LCD Display 1280*1024 LVDS 800nits Wide Temperature LCMA-RX0190GB03-C080 0 19 Inch LCD Display 1280*1024 LVDS 800nits Wide Temperature LCMA-RX0190GB03-C080 1 19 Inch LCD Display 1280*1024 LVDS 800nits Wide Temperature LCMA-RX0190GB03-C080 2 19 Inch LCD Display 1280*1024 LVDS 800nits Wide Temperature LCMA-RX0190GB03-C080 3

High Brirghtness LCD Specifications ►

LCMA-RX0190GB01-C050

  Brand   Rogin
  Series   High Brightness LCD Display
  Panel Size(inch)
   19
  Model
   LCMA-RX0190GB03-C080
  Brightness
   800
  Resolution
   1280*1024
  Active Area
   374.8*303
  Overall Size
   396*324*13.38
  Viewing Angle
   89/89/89/89
  Interface Definition
   LVDS (2 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   1000:1
  Aspect Ratio
   5:4
  Touch Panel   Without
  Operating Temperature
   -20~70℃
