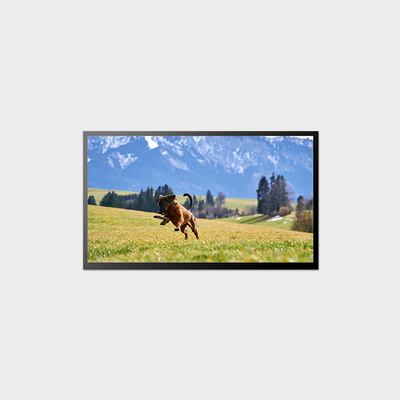

23.8 inch LCD Display Support Outdoor Application With LVDS Interface Connector LCMA-RX0238GA01-C150

  • 23.8 inch LCD Display Support Outdoor Application With LVDS Interface Connector LCMA-RX0238GA01-C150
Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0238GA01-C150
Document LCMA-RX0185GB10-C050.pdf
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 4-6weeks
Payment Terms T/T,L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Panel Size 23.8" Resolution 1920*1080
Brightness 1500 (Typ.) Aspect Ratio 16:9
Active Area 527.04*296.46mm (A.A) Outline Dimension 557.2*326.6*17.5mm
Highlight

23.8 inch outdoor LCD display

,

high brightness LVDS display

,

LCMA-RX0238GA01-C150 LCD module
Leave a Message
Product Description
23.8 inch LCD Display Support Outdoor Application With LVDS Interface Connector LCMA-RX0238GA01-C150
Product Specifications
Panel Size 23.8"
Resolution 1920*1080
Brightness 1500 (Typ.)
Aspect Ratio 16:9
Active Area 527.04*296.46mm (A.A)
Outline Dimension 557.2*326.6*17.5mm
Product Features
  • Brightness customization 700-5000cd/m²
  • Outdoor sunlight readable
  • Low power consumption
  • High uniformity up to 85%
  • Aluminium backlight structure with good heat dissipation
  • Wide temperature range up to -30°C-80°C
  • High shock resistance and high stability
Applications
  • Bus Stop Station
  • Intelligent Charging Pile
  • Outdoor Electronic News Reading Board
  • Intelligent Express Cabinet
  • Vending Machine
  • Commercial Advertising
  • Attractions Information Inquiry Machine
  • Community Information Board
23.8 inch LCD Display Support Outdoor Application With LVDS Interface Connector LCMA-RX0238GA01-C150 0 23.8 inch LCD Display Support Outdoor Application With LVDS Interface Connector LCMA-RX0238GA01-C150 1 23.8 inch LCD Display Support Outdoor Application With LVDS Interface Connector LCMA-RX0238GA01-C150 2 23.8 inch LCD Display Support Outdoor Application With LVDS Interface Connector LCMA-RX0238GA01-C150 3
Technical Specifications
Brand Rogin
Series High Brightness LCD Display
Panel Size (inch) 23.8
Model LCMA-RX0238GA01-C150
Brightness 1500
Resolution 1920*1080
Active Area 527.04*296.46
Overall Size 557.2*326.6*17.5
Viewing Angle 89/89/89/89
Interface Definition LVDS (2 ch, 8-bit)
Backlight Type WLED
Contrast Ratio 3000:1
Aspect Ratio 16:9
Touch Panel Without
Operating Temperature 0~50℃
