18.5 inch TFT Display Industrial Control Application With 1920*1080 Support LVDS Interface

  • 18.5 inch TFT Display Industrial Control Application With 1920*1080 Support LVDS Interface
Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0185GB10-C050
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T,L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name TFT LCD Display Panel Size 18.5"
Resolution 1920*1080 Brightness 500 (Typ.)
Operating Temp. 0~50℃ Active Area 409.8*230.04mm
Outline Dimension 431*255*9.2mm
Highlight

18.5 inch industrial TFT display

,

high brightness LCD display with LVDS

,

1920x1080 resolution industrial control monitor
Leave a Message
Product Description
18.5 inch TFT Display Industrial Control Application With 1920*1080 Support LVDS Interface
Product Advantage
  • 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
  • Advanced cutting technology to ensure the yield and precision.
  • High reliability with same features as original panel.
  • High Anti-vibration.
  • Brightness can be customized (500-2500nit).
  • Long life time 50K hours(Typ), up to 80K hours.
Product Application
  • Commercial signage: Advertising and Price Shelves.
  • Public transportation: Bill board for Bus/Metro and light rail.
  • Guidance board, Lift advertising board.
  • Financial services. Bank call notice board.
  • Name card.
  • Advertising board on taxi.

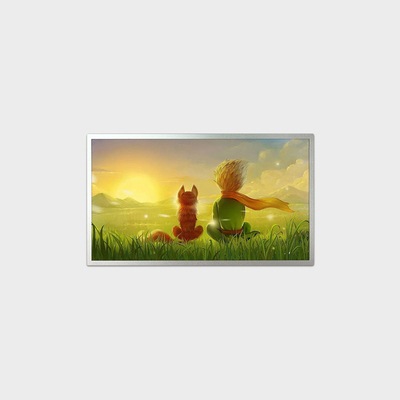

18.5 inch TFT Display Industrial Control Application With 1920*1080 Support LVDS Interface 0 18.5 inch TFT Display Industrial Control Application With 1920*1080 Support LVDS Interface 1 18.5 inch TFT Display Industrial Control Application With 1920*1080 Support LVDS Interface 2 18.5 inch TFT Display Industrial Control Application With 1920*1080 Support LVDS Interface 3
Specifications
LCMA-RX0185GB10-C050
Brand Rogin
Series TFT LCD Display
Panel Size 18.5 inch
Model LCMA-RX0185GB10-C050
Brightness 500
Resolution 1920*1080
Active Area 409.8*230.04mm
Overall Size 431*255*9.2mm
Viewing Angle 89/89/89/89
Interface Definition LVDS
Backlight Type WLED
Contrast Ratio 1000:1
Touch Panel Without
Operating Temperature 0-50 ℃
