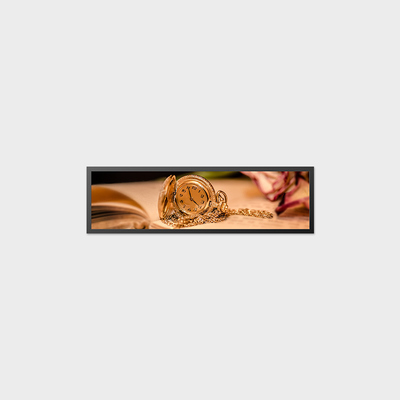

28.4 inch Bar Type Cutting Display Support Customized Touch Panel High Brightess Solution

  • 28.4 inch Bar Type Cutting Display Support Customized Touch Panel High Brightess Solution
Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0284TA01-C070
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T,L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Bar Type TFT LCD Display Panel Size 28.4"
Resolution 1920*511 Brightness 700 (Typ.)
Operating Temp. 0~50℃ Active Area 698.4*186mm
Outline Dimension 727.4*215*19.3mm
Highlight

28.4 inch bar type LCD display

,

customized touch panel display

,

high brightness bar display solution
Leave a Message
Product Description
28.4 inch Bar Type Cutting Display Support Customized Touch Panel High Brightess Solution
28.4 inch Bar Type Cutting Display Support Customized Touch Panel High Brightess Solution
Product Advantage
  • 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
  • Advanced cutting technology to ensure the yield and precision.
  • High reliability with same features as original panel.
  • High Anti-vibration.
  • Brightness can be customized (500-2500nit).
  • Long life time 50K hours(Typ), up to 80K hours.
Product Application
  • Commecial signage : Advertising and Price Shelves.
  • Public transportation: Bill board for Bus/Metro and light rail.
  • Guidance board, Lift advertising board.
  • Financial services. Bank call notice board.
  • Name card.
  • Advertising board on taxi.
28.4 inch Bar Type Cutting Display Support Customized Touch Panel High Brightess Solution 0 28.4 inch Bar Type Cutting Display Support Customized Touch Panel High Brightess Solution 1 28.4 inch Bar Type Cutting Display Support Customized Touch Panel High Brightess Solution 2 28.4 inch Bar Type Cutting Display Support Customized Touch Panel High Brightess Solution 3
Specifications
LCMA-RX0284TA01-C070
Brand Rogin
Series Bar Type TFT LCD Display
Panel Size 28.4 inch
Model LCMA-RX0284TA01-C070
Brightness 700nits
Resolution 1920*511
Active Area 698.4*186mm
Overall Size 727.4*215*19.3mm
Viewing Angle 89/89/89/89
Interface Definition LVDS (2 ch, 8-bit)
Backlight Type WLED
Contrast Ratio 4000:1
Touch Panel Without
Operating Temperature -20-60 ℃
