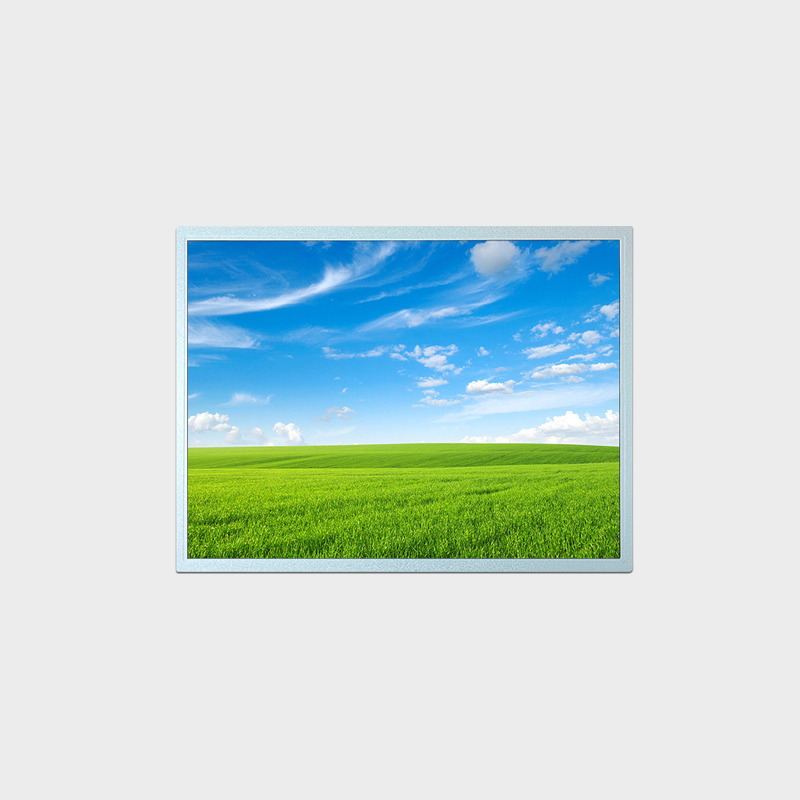

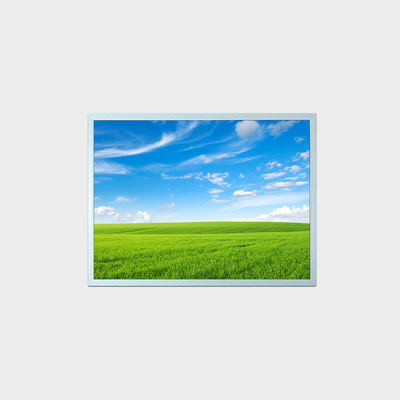

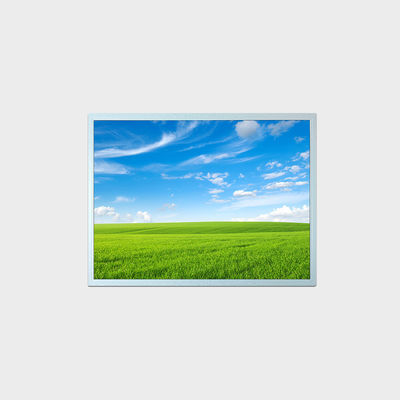

15 inch TFT LCD Display Support High Brightness Outdoor Vending Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Panel Size | 15" | Resolution | 1024*768 |
|---|---|---|---|
| Brightness | 1500 (Typ.) | Aspect Ratio | 4:3 |
| Active Area | 304.128*228.096mm | Outline Dimension | 326.5*253.5*9.7mm |
| Highlight | 15 inch high brightness LCD display,outdoor vending machine LCD screen,TFT LCD display for vending |
||
Product Description
15 inch TFT LCD Display Support High Brightness Outdoor Vending Machine
High Brightness LCD Product Features
- Brightness customization 700-5000cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Aluminium backlight structure with good heat dissipation
- Wide temperature range up to -30°C-80°C
- High shock resistance and high stability
High Brightness LCD Product Applications
- Bus Stop Station
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising
- Attractions Information Inquiry Machine
- Community Information Board
High Brightness LCD Data Sheet
Model: LCAM-RX0150GB05-C150
| Brand | Rogin |
|---|---|
| Series | High Brightness LCD Display |
| Panel Size (inch) | 15 |
| Model | LCAM-RX0150GB05-C150 |
| Brightness | 1500 |
| Resolution | 1024*768 |
| Active Area | 304.128*228.096 |
| Overall Size | 326.5*253.5*9.7 |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | LVDS (1 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 16:9 |
| Touch Panel | Without |
| Operating Temperature | -20-70℃ |
