19.4 Inch Bar Type TFT LCD 1000nits Brightness With Low Ppower Consumption Solution

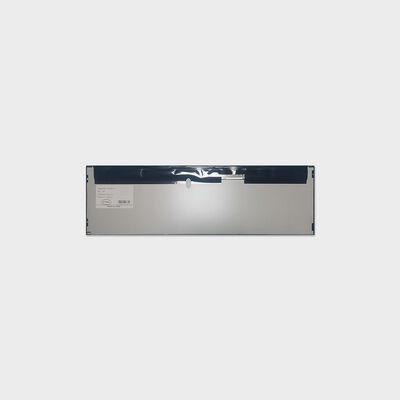

Large Image : 19.4 Inch Bar Type TFT LCD 1000nits Brightness With Low Ppower Consumption Solution

Product Details:

Place of Origin:	Shenzhen
Brand Name:	ROGIN
Model Number:	LCMA-RX0194TA03-C100

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Price is negotiable.
Packaging Details:	Cartons or wooden cases
Delivery Time:	6-8 weeks
Payment Terms:	T/T,L/C
Supply Ability:	Spot adequacy

Contact Now

19.4 Inch Bar Type TFT LCD 1000nits Brightness With Low Ppower Consumption Solution

Description

Name:	Bar Type LCD	Panel Size:	19.4"
Resolution:	1920*510	Brightness:	1000 (Typ.)
Operating Temp.:	0~50 ℃	Active Area:	476.64*126.6mm
Outline Dimension:	495.6150.712mm	Interface:	LVDS (2 Ch, 8-bit)
Highlight:	19.4 inch bar type LCD display , 1000nits brightness TFT LCD , low power consumption bar LCD

19.4 Inch Bar Type TFT LCD 1000nits Brightness With Low Power Consumption Solution

19.4 Inch Bar Type TFT LCD 1000nits Brightness With Low Power Consumption Solution

Product Advantage

3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting)
Advanced cutting technology to ensure the yield and precision
High reliability with same features as original panel
High Anti-vibration
Brightness can be customized (500-2500nit)
Long life time 50K hours (Typ), up to 80K hours

Product Application

Commercial signage: Advertising and Price Shelves
Public transportation: Bill board for Bus/Metro and light rail
Guidance board, Lift advertising board
Financial services: Bank call notice board
Name card: Bus Stop/Station
Advertising board on taxi/bus/subway and so on

Specifications

LCMA-RX0194TA03-C100

Brand	Rogin
Series	Bar Type LCD Display
Panel Size	19.4 inch
Model	LCMA-RX0194TA03-C100
Brightness	1000
Resolution	1920*510
Active Area	476.64*126.6mm
Overall Size	495.6150.712mm
Interface Definition	LVDS (2 ch, 8-bit)
Backlight Type	WLED
Contrast Ratio	3000:1
Touch Panel	Without
Operating Temperature	0~50 ℃
