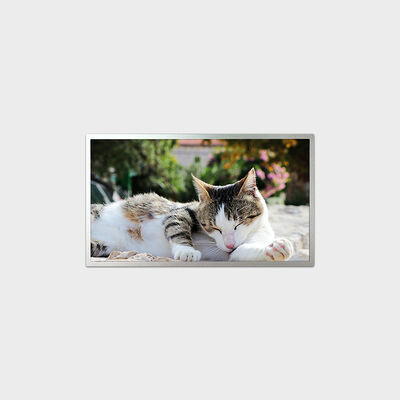

18.5 Inch TFT LCD Display E-LED type Series Solution With 1200nits Brightness
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 18.5 Inch TFT LCD Display | Panel Size | 18.5" |
|---|---|---|---|
| Resolution | 1920*1080 | Brightness | 1200 (Typ.) |
| Aspect Ratio | 16:9 | Active Area | 408.96*230.04mm |
| Outline Dimension | 430.4*254.6*12mm | Interface | LVDS (2 Ch, 8-bit) |
| Highlight | 18.5 inch TFT LCD display,high brightness LCD display 1200nits,E-LED type LCD display |
||
Product Description
18.5 Inch TFT LCD Display E-LED type Series Solution With 1200nits Brightness
Product Advantages
- Brightness customization 700-5000 cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime, 50K hours (Typ), up to 80K hours
- Aluminium backlight structure with good heat dissipation
- Wide temperature range up to -30°C to 80°C
- High shock resistance and high stability
Product Applications
- Bus Station Signage Board
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising Machine
- Attractions Information Inquiry Machine
- Community Information Board
Specifications
| Model | LCMA-RX0185GB03-C120 |
| Brand | Rogin |
| Series | High Brightness LCD Display |
| Panel Size (inch) | 18.5 |
| Brightness | 1200 nits |
| Resolution | 1920 × 1080 |
| Active Area | 408.96 × 230.04 mm |
| Overall Size | 430.4 × 254.6 × 12 mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 16:9 |
| Touch Panel | Without |
| Operating Temperature | -30°C to 80°C |
