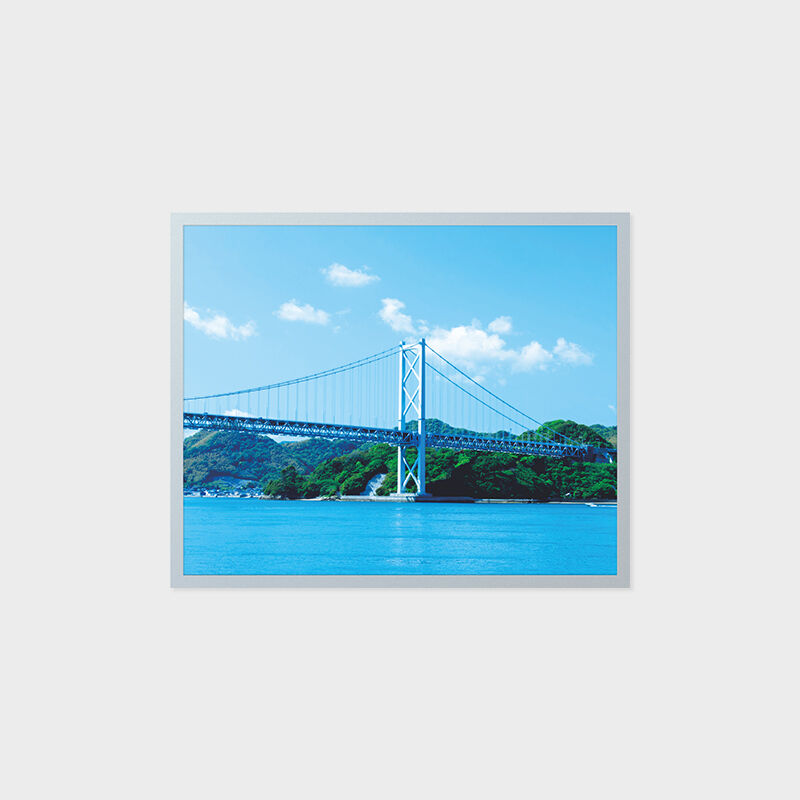

19 Inch TFT LCD Display 1280*1024 Resolution With Wide Temperature Industrial Area
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 19 Inch TFT LCD Display | Panel Size | 19" |
|---|---|---|---|
| Resolution | 1280*1024 | Brightness | 800 (Typ.) |
| Aspect Ratio | 5:4 | Active Area | 374.8*303mm |
| Outline Dimension | 396*324*13.38mm | Interface | LVDS (2 Ch, 8-bit) |
| Highlight | 19 inch TFT LCD display,1280x1024 resolution LCD screen,wide temperature industrial LCD display |
||
Product Description
19 Inch TFT LCD Display 1280×1024 Resolution With Wide Temperature Industrial Area
Product Advantages
- Brightness customization 700-5000 cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime: 50K hours (Typical), up to 80K hours
- Aluminium backlight structure with good heat dissipation
- Wide temperature range: -30°C to 80°C
- High shock resistance and high stability
Product Applications
- Bus Station Signage Board
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising Machine
- Attractions Information Inquiry Machine
- Community Information Board
Specifications
| Model | LCMA-RX0190GB03-C080 |
| Brand | Rogin |
| Series | High Brightness LCD Display |
| Panel Size | 19 inch |
| Brightness | 800 nits |
| Resolution | 1280 × 1024 |
| Active Area | 374.8 × 303 mm |
| Overall Size | 396 × 324 × 13.38 mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 5:4 |
| Touch Panel | Without |
| Operating Temperature | -20°C to 70°C |
