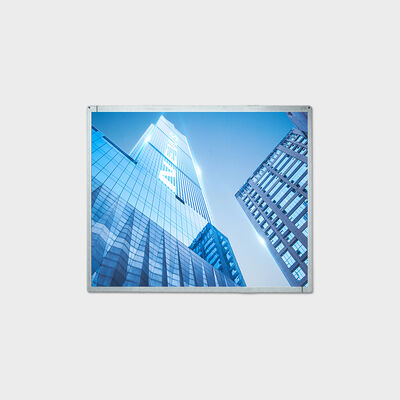

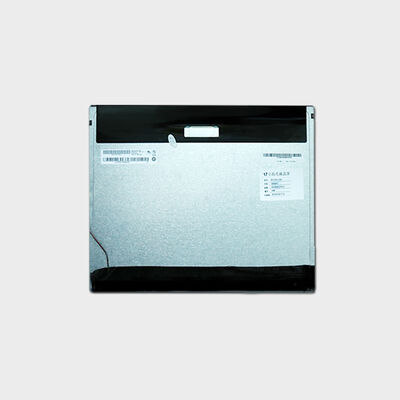

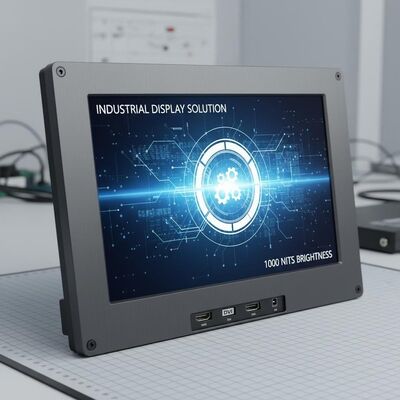

17 inch TFT Solution For Industrial LCD Project Support 1000nits Brightness Solution

17 inch TFT Solution For Industrial LCD Project Support 1000nits Brightness Solution
17 inch TFT Solution For Industrial LCD Project Support 1000nits Brightness Solution 17 inch TFT Solution For Industrial LCD Project Support 1000nits Brightness Solution

Large Image :  17 inch TFT Solution For Industrial LCD Project Support 1000nits Brightness Solution

Product Details:
Place of Origin: Shenzhen
Brand Name: ROGIN
Model Number: LCMA-RX0170GA02-C100
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Price is negotiable.
Packaging Details: Cartons or wooden cases
Delivery Time: 6-8 weeks
Payment Terms: T/T,L/C
Supply Ability: Spot adequacy
Contact Now

17 inch TFT Solution For Industrial LCD Project Support 1000nits Brightness Solution

Description
Name: 17 Inch TFT LCD Display Panel Size: 17"
Resolution: 1280*1024 Brightness: 1000 (Typ.)
Aspect Ratio: 5:4 Active Area: 337.92*270.336mm
Outline Dimension: 358.5*296.5*10.3mm Interface: LVDS (2 Ch, 8-bit)
Highlight:

17 inch industrial LCD display

,

high brightness TFT solution

,

1000nits LCD project support

17 inch TFT Solution For Industrial LCD Project Support 1000nits Brightness Solution

Product Advantage ►

1. Brightness customization 700-5000cd/m2.
2.Outdoor sunlight readable.
3. Low power consumption.
4.High uniformity up to 85% .
5. Long lifetime, 50K hours(Typ), up to 80K hours
6.Aluminium backlight structure with good heat dissipation.
7.Wide temperature range up to -30°C-80°C.
8.High shock resistance and high stability.

Product Application ►

1. Bus Station Signage Board.
2. Intelligent Charging Pile.
3. Outdoor Electronic News Reading Board.
4. Intelligent Express Cabinet.
5. Vending Machine.
6. Commercial Advertising Machine.
7. Attractions Information Inquiry Machine.
8. Community Information Board.
17 inch TFT Solution For Industrial LCD Project Support 1000nits Brightness Solution 0 17 inch TFT Solution For Industrial LCD Project Support 1000nits Brightness Solution 1 17 inch TFT Solution For Industrial LCD Project Support 1000nits Brightness Solution 2 17 inch TFT Solution For Industrial LCD Project Support 1000nits Brightness Solution 3

Specifications ►

LCMA-RX0170GA02-C100

  Brand   Rogin
  Series   High Brightness LCD Display
  Panel Size(inch)
   17
  Model
   LCMA-RX0170GA02-C100
  Brightness   1000nits
  Resolution
   1280*1024
  Active Area
   337.92*270.336mm
  Overall Size
   358.5*296.5*10.3mm
  Viewing Angle
   85/85/80/80
  Interface Definition
   LVDS (2 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   1200:1
  Aspect Ratio
   5:4
  Touch Panel   Without
  Operating Temperature
   0~50℃
