12.1 inch TFT LCD Solution For Industrial Application With Customization
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 12.1 Inch TFT LCD Display | Panel Size | 12.1" |
|---|---|---|---|
| Resolution | 1280*800 | Brightness | 800 (Typ.) |
| Aspect Ratio | 16:9 | Active Area | 261.12*163.2mm |
| Outline Dimension | 277.7*180.6*9.5mm | Interface | LVDS (1 Ch, 8-bit) |
| Highlight | 12.1 inch industrial TFT LCD,customizable high brightness LCD display,industrial LCD solution with warranty |
||
Product Description

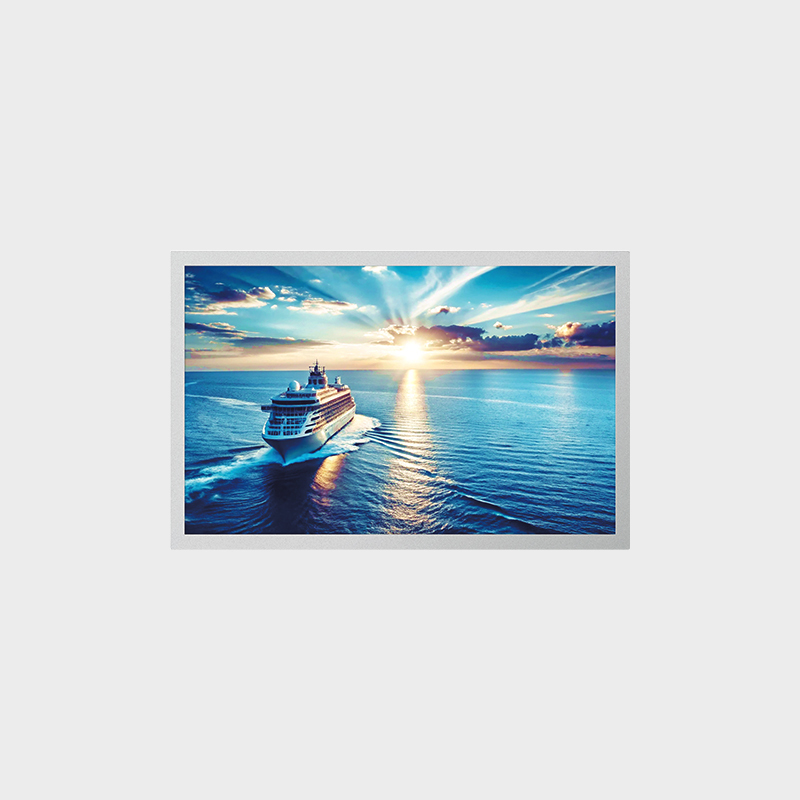

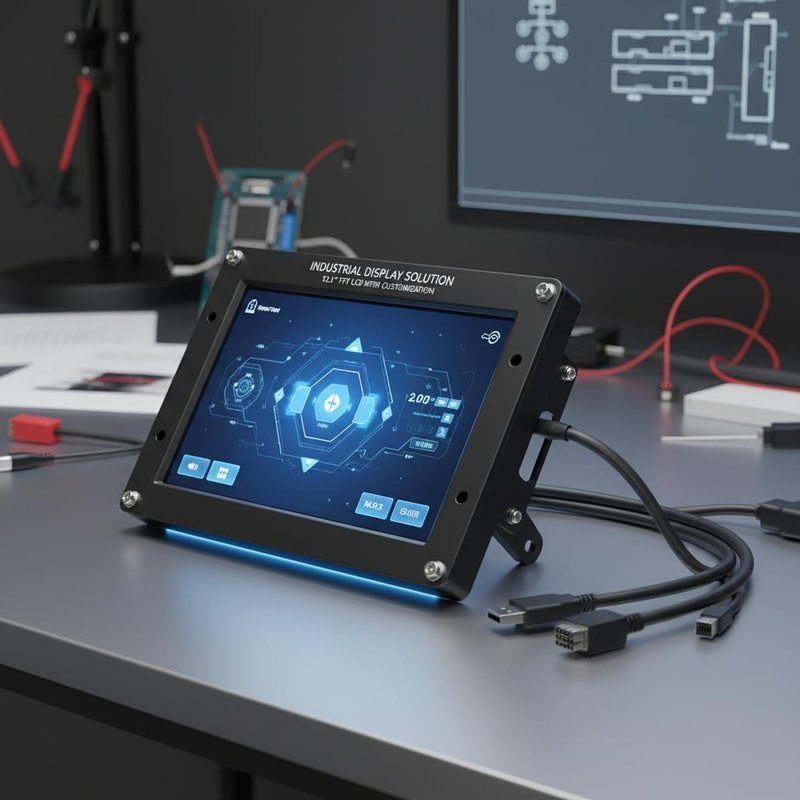

12.1 inch TFT LCD Solution For Industrial Application With Customization
Product Advantages
- Brightness customization 700-5000 cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime: 50K hours (Typ), up to 80K hours
- Aluminium backlight structure with good heat dissipation
- Wide temperature range: -30°C to 80°C
- High shock resistance and high stability
Product Applications
- Bus Station Signage Board
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising Machine
- Attractions Information Inquiry Machine
- Community Information Board
Specifications
Model: LCMA-RX0121GR03-C150
| Brand | Rogin |
|---|---|
| Series | High Brightness LCD Display |
| Panel Size (inch) | 12.1 |
| Model | LCMA-RX0121GR03-C150 |
| Brightness | 1500 nits |
| Resolution | 1280 × 800 |
| Active Area | 261.12 × 163.2 mm |
| Overall Size | 277.7 × 180.6 × 9.5 mm |
| Viewing Angle | 85/85/85/85 |
| Interface Definition | LVDS (1 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1200:1 |
| Aspect Ratio | 16:9 |
| Touch Panel | Without |
| Operating Temperature | -20°C to 70°C |
