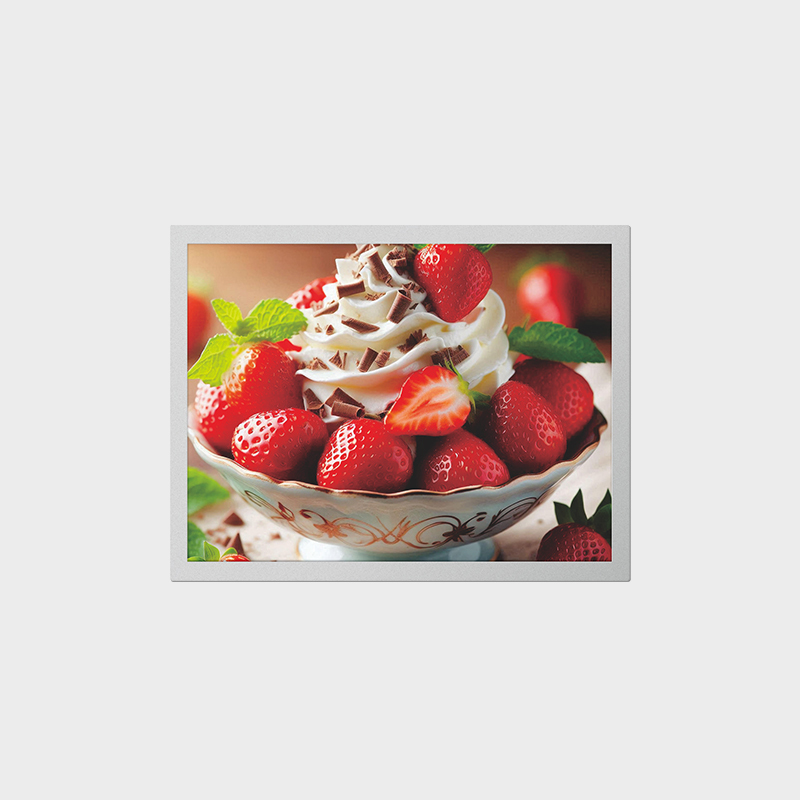

10.4 Inch High Brightness TFT Display for Industrial Control Applications
Product Details
| Name | 10.4 Inch TFT LCD Display | Panel Size | 10.4" |
|---|---|---|---|
| Resolution | 1024*768 | Brightness | 1500 (Typ.) |
| Aspect Ratio | 4:3 | Active Area | 210.43*157.824mm |
| Outline Dimension | 227*175.8*9.2mm | Interface | LVDS (1 Ch, 6/8-bit) |
| Highlight | 10.4 inch high brightness TFT display,industrial control LCD display,high brightness TFT screen |
||
Product Description
10.4 Inch High Brightness TFT Display for Industrial Control Applications
Product Advantages
- Brightness customization 700-5000 cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime: 50K hours (Typical), up to 80K hours
- Aluminium backlight structure with excellent heat dissipation
- Wide temperature range: -30°C to 80°C
- High shock resistance and stability
Product Applications
- Bus Station Signage Board
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising Machine
- Attractions Information Inquiry Machine
- Community Information Board
Specifications
Model: LCMA-RX0104GR02-C150
| Brand | Rogin |
|---|---|
| Series | High Brightness LCD Display |
| Panel Size (inch) | 10.4 |
| Model | LCMA-RX0104GR02-C150 |
| Brightness | 1500 nits |
| Resolution | 1024 × 768 |
| Active Area | 210.43 × 157.824 mm |
| Overall Size | 227 × 175.8 × 9.2 mm |
| Viewing Angle | 85/85/85/85 |
| Interface Definition | LVDS (1 ch, 6/8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 900:1 |
| Aspect Ratio | 4:3 |
| Touch Panel | Without |
| Operating Temperature | -30°C to 80°C |
