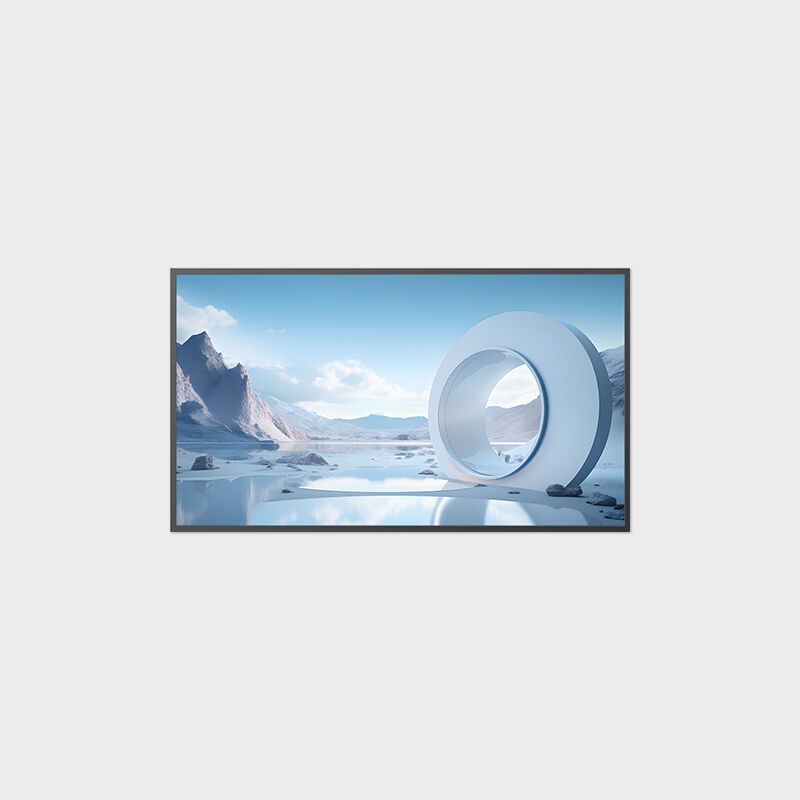

86 inch High Brightness TFT Display Outdoor Window LCD Screen Completed Machine

86 inch High Brightness TFT Display Outdoor Window LCD Screen Completed Machine
86 inch High Brightness TFT Display Outdoor Window LCD Screen Completed Machine
86 inch High Brightness TFT Display Outdoor Window LCD Screen Completed Machine 86 inch High Brightness TFT Display Outdoor Window LCD Screen Completed Machine 86 inch High Brightness TFT Display Outdoor Window LCD Screen Completed Machine

Large Image :  86 inch High Brightness TFT Display Outdoor Window LCD Screen Completed Machine

Product Details:
Place of Origin: Shenzhen
Brand Name: ROGIN
Model Number: RX0860ZJ04-Z400 V01
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Price is negotiable.
Packaging Details: Cartons or wooden cases
Delivery Time: 6-8 weeks
Payment Terms: T/T,L/C
Supply Ability: Spot adequacy
Contact Now

86 inch High Brightness TFT Display Outdoor Window LCD Screen Completed Machine

Description
Name: LCD Advertising Machine Panel Size: 86"
Resolution: 3840*2160 Brightness: 4000 (Typ.)
Operating Temp.: -20~70℃ Active Area: 1895.04*1065.96mm
Outline Dimension: 1942.04*1113*96.7mm Power: 1327w
RAM/ROM: 4G+64G(Optional)
Highlight:

86 inch outdoor LCD screen

,

high brightness TFT display

,

window LCD advertising machine

86 inch High Brightness TFT Display Outdoor Window LCD Screen Completed Machine
This 86-inch high brightness TFT display is designed for outdoor window applications, featuring exceptional visibility and durability for commercial signage and public information systems.
Product Advantages
  • 3 cutting machines with 2 advanced production lines, capable of cutting up to 1.7m (75 inch cutting capacity)
  • Advanced cutting technology ensuring high yield and precision manufacturing
  • High reliability with features matching original panel specifications
  • Enhanced anti-vibration performance for stable operation
  • Customizable brightness ranging from 500-2500 nits
  • Extended lifespan: 50,000 hours typical, up to 80,000 hours maximum
Product Applications
  • Commercial signage: Advertising displays and price shelves
  • Public transportation: Billboard systems for buses, metro, and light rail
  • Guidance boards and elevator advertising displays
  • Financial services: Bank call notice boards and information displays
  • Name cards and identification systems for bus stops and stations
  • Advertising boards on taxis, buses, subways, and other transit vehicles
86 inch outdoor LCD display installation example 1 86 inch outdoor LCD display installation example 2 86 inch outdoor LCD display installation example 3 86 inch outdoor LCD display technical details
Technical Specifications
Model: RX0860ZJ04-Z400 V01
Brand Rogin
Series LCD Advertising Machine
Panel Size 86 inch
Model RX0860ZJ04-Z400 V01
Brightness 4000 nits
Resolution 3840 × 2160
Active Area 1895.04 × 1065.96 mm
Overall Size 1942.04 × 1113 × 96.7 mm
Interface Definition LVDS/HDMI/V-By-One/MIPI
Backlight Type WLED
Contrast Ratio 1300:1
System Android 14
Touch Panel Without
Operating Temperature -20 to 70 ℃
