14.9 inch Bar Type LCD Display 1280*204 Resolution Support 700nits Brightness

14.9 inch Bar Type LCD Display 1280*204 Resolution Support 700nits Brightness
14.9 inch Bar Type LCD Display 1280*204 Resolution Support 700nits Brightness

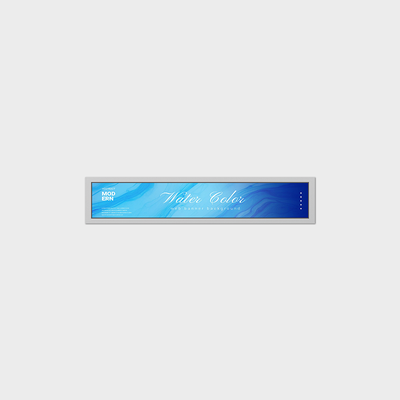

Large Image :  14.9 inch Bar Type LCD Display 1280*204 Resolution Support 700nits Brightness

Product Details:
Place of Origin: Shenzhen
Brand Name: ROGIN
Model Number: LCMA-RX0149TB03-C070
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Price is negotiable.
Packaging Details: Cartons or wooden cases
Delivery Time: 6-8 weeks
Payment Terms: T/T,L/C
Supply Ability: Spot adequacy
Contact Now

14.9 inch Bar Type LCD Display 1280*204 Resolution Support 700nits Brightness

Description
Panel Size: 14.9" Resolution: 1280*204
Brightness: 700 (Typ.) Operating Temp.: 0~50℃
Active Area: 374.78(H)x 60(V)mm Outline Dimension: 399.78(H)x81(V)x12.88(D)mm
Name: Bar Type LCD Display
Highlight:

14.9 inch bar type LCD display

,

bar type LCD display 1280x204 resolution

,

LCD display with 700nits brightness

14.9 inch Bar Type LCD Display
High-performance 14.9 inch bar type LCD display featuring 1280×204 resolution and 700 nits brightness for exceptional visibility in various lighting conditions.
Product Advantages
  • Advanced cutting technology with 3 cutting machines and 2 production lines, supporting lengths up to 1.7m (75 inch)
  • Precision engineering ensures high yield and exceptional accuracy
  • High reliability with features matching original panel specifications
  • Superior anti-vibration performance
  • Customizable brightness range from 500 to 2500 nits
  • Extended lifespan: 50,000 hours typical, up to 80,000 hours maximum
Product Applications
  • Commercial signage: Advertising displays and price shelves
  • Public transportation: Bus, metro, and light rail billboards
  • Guidance boards and lift advertising displays
  • Financial services: Bank call notice boards
  • Name card displays
  • Taxi advertising boards
14.9 inch Bar Type LCD Display front view 14.9 inch Bar Type LCD Display side view 14.9 inch Bar Type LCD Display installation example 14.9 inch Bar Type LCD Display close-up detail
Technical Specifications
Model LCMA-RX0149TB03-C070
Brand Rogin
Series Bar Type LCD Display
Panel Size 14.9 inch
Brightness 700 nits
Power Consumption 15.5W
Resolution 1280×204
Active Area 374.78(H) × 60(V) mm
Overall Size 399.78(H) × 81(V) × 12.88(D) mm
Viewing Angle 89/89/89/89
Interface Definition LVDS
Backlight Type WLED
Contrast Ratio 1000:1
Aspect Ratio Cutting Solution
Touch Panel Without
Operating Temperature 0~50 ℃
