19.78 inch Bar Type LCD Display 1920*640 LVDS Interface Wide Temperature

19.78 inch Bar Type LCD Display 1920*640 LVDS Interface Wide Temperature
19.78 inch Bar Type LCD Display 1920*640 LVDS Interface Wide Temperature 19.78 inch Bar Type LCD Display 1920*640 LVDS Interface Wide Temperature

Large Image :  19.78 inch Bar Type LCD Display 1920*640 LVDS Interface Wide Temperature

Product Details:
Place of Origin: Shenzhen
Brand Name: ROGIN
Model Number: LCMA-RX1978TB01-C035
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Price is negotiable.
Packaging Details: Cartons or wooden cases
Delivery Time: 6-8 weeks
Payment Terms: T/T,L/C
Supply Ability: Spot adequacy
Contact Now

19.78 inch Bar Type LCD Display 1920*640 LVDS Interface Wide Temperature

Description
Panel Size: 19.78" Name: Bar Type LCD Display
Resolution: 1920*640 Brightness: 350 (Typ.)
Operating Temp.: -20~85℃ Active Area: 476.64*158.88mm
Outline Dimension: 495.8(H)*183.1(V)*13.6(D)mm
Highlight:

19.78 inch bar type LCD display

,

bar type LCD display LVDS interface

,

wide temperature bar type LCD display

19.78 inch Bar Type LCD Display 1920×640 LVDS Interface Wide Temperature
19.78 inch Bar Type LCD Display 1920×640 LVDS Interface 1000nits Wide Temperature
Product Advantages
  • Three cutting machines with two advanced production lines, capable of cutting up to 1.7m (75 inch cutting capacity)
  • Advanced cutting technology ensures high yield and precision manufacturing
  • High reliability with identical features to original panel specifications
  • Enhanced anti-vibration performance for stable operation
  • Customizable brightness ranging from 500-2500 nits
  • Extended lifespan: 50,000 hours typical, up to 80,000 hours maximum
Product Applications
  • Commercial signage: Advertising displays and price shelves
  • Public transportation: Bus, metro, and light rail billboards
  • Guidance boards and lift advertising displays
  • Financial services: Bank call notice boards
  • Name card displays
  • Taxi advertising boards

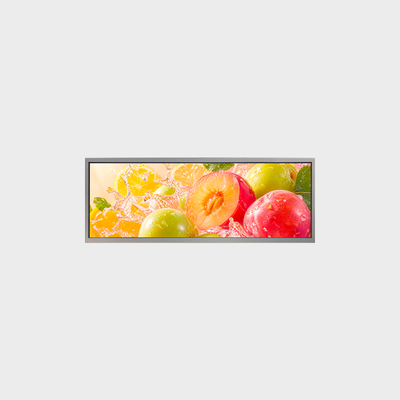

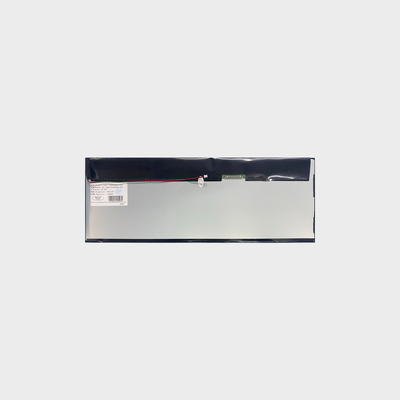

19.78 inch bar type LCD display front view 19.78 inch bar type LCD display side view 19.78 inch bar type LCD display application example 19.78 inch bar type LCD display specifications detail
Technical Specifications
Model: LCMA-RX1978TB01-C035
Brand Rogin
Series Bar Type LCD Display
Panel Size 19.78 inch
Model LCMA-RX1978TB01-C035
Brightness 350 nits
Power Consumption 14.9 W
Resolution 1920×640
Active Area 476.64×158.88mm
Overall Size 495.8(H)×183.1(V)×13.6(D)mm
Viewing Angle IPS
Interface Definition LVDS (2 ch, 8-bit)
Backlight Type WLED
Contrast Ratio 1000:1
Aspect Ratio 3:1
Touch Panel Without
Operating Temperature -20~85 ℃
