10.1 Inch Support 1000nits High Brightness With 1920*1200 Resolution Solution

10.1 Inch Support 1000nits High Brightness With 1920*1200 Resolution Solution
10.1 Inch Support 1000nits High Brightness With 1920*1200 Resolution Solution
10.1 Inch Support 1000nits High Brightness With 1920*1200 Resolution Solution 10.1 Inch Support 1000nits High Brightness With 1920*1200 Resolution Solution 10.1 Inch Support 1000nits High Brightness With 1920*1200 Resolution Solution

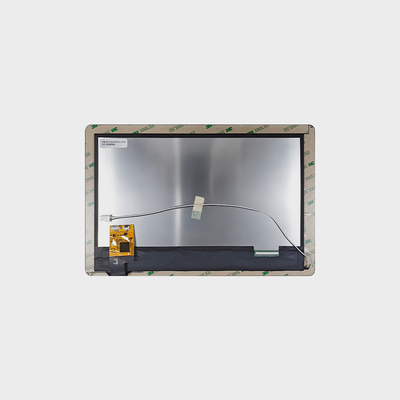

Large Image :  10.1 Inch Support 1000nits High Brightness With 1920*1200 Resolution Solution

Product Details:
Place of Origin: Shenzhen
Brand Name: ROGIN
Model Number: RX101B-008-B01-CTDA
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Price is negotiable.
Packaging Details: Cartons or wooden cases
Delivery Time: 6-8 weeks
Payment Terms: T/T,L/C
Supply Ability: Spot adequacy
Contact Now

10.1 Inch Support 1000nits High Brightness With 1920*1200 Resolution Solution

Description
Name: 10.1 Inch TFT LCD Display Panel Size: 10.1"
Resolution: 1920*1200 Brightness: 900 (Typ.) With CTP
Aspect Ratio: 16:10 Active Area: 216.81*135.5mm
Outline Dimension: 228.5*149*7.12mm Interface: LVDS
Power For LCD: 3.3V Application: Smart Home/Industrial Equipment/Medical Devices
Highlight:

10.1 inch high brightness LCD display

,

1000nits bright LCD screen

,

1920x1200 resolution LCD display

10.1 Inch High Brightness LCD Display with 1000nits & 1920×1200 Resolution
Professional-grade 10.1-inch LCD display solution featuring exceptional 1000nits brightness and high-resolution 1920×1200 clarity, designed for demanding industrial and commercial applications.
Product Advantages
  • Customizable brightness range: 700-5000 cd/m²
  • Outdoor sunlight readable performance
  • Low power consumption design
  • High uniformity up to 85%
  • Extended lifetime: 50,000 hours typical, up to 80,000 hours
  • Aluminum backlight structure for optimal heat dissipation
  • Wide operating temperature range: -30°C to 80°C
  • High shock resistance and operational stability
Product Applications
  • Bus station signage boards
  • Intelligent charging piles
  • Outdoor electronic news reading boards
  • Intelligent express cabinets
  • Vending HMI machines
  • Commercial advertising machines
  • Attractions information inquiry machines
  • Community information boards

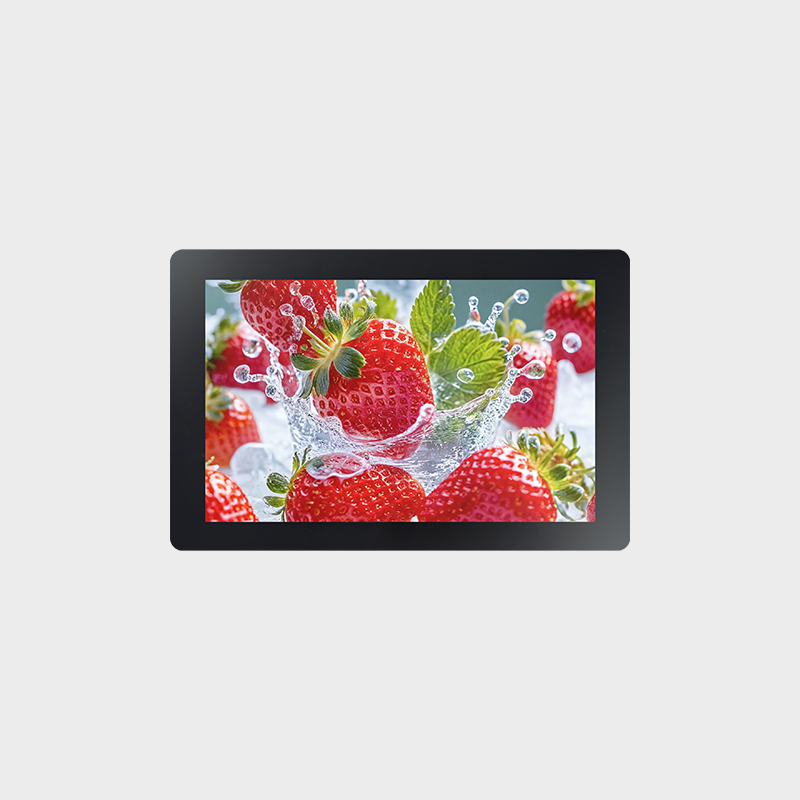

10.1 inch high brightness LCD display front view LCD display technical diagram Display specifications and dimensions High brightness display in application
Technical Specifications
Model Number RX101B-008-B01-CTDA
Brand Rogin
Series High Brightness LCD Display
Panel Size 10.1 inch
Brightness 1000 nits
Resolution 1920 × 1200
Active Area 216.81 × 135.5 mm
Overall Size 228.5 × 149 × 7.12 mm
Viewing Angle 89°/89°/89°/89°
Interface Definition LVDS
Backlight Type WLED
Contrast Ratio 3000:1
Aspect Ratio 16:9
Touch Panel With CTP (Optical bonding)
Operating Temperature -20°C to 70°C
