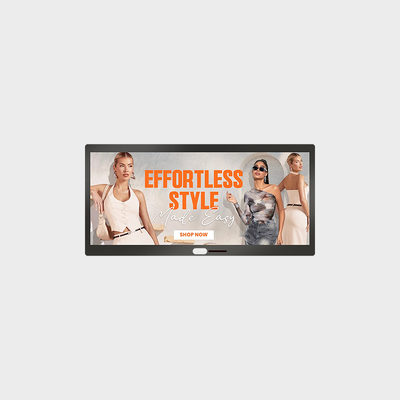

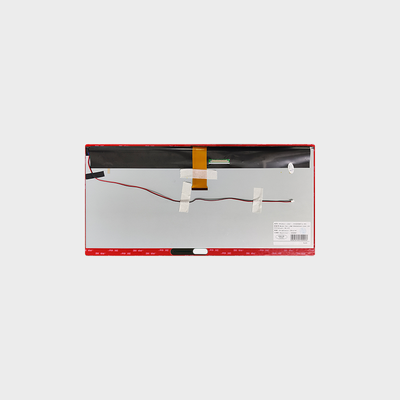

20.4 inch Bar Type LCD Display 1920*830 Support CTP Touch Panel Solution

20.4 inch Bar Type LCD Display 1920*830 Support CTP Touch Panel Solution
20.4 inch Bar Type LCD Display 1920*830 Support CTP Touch Panel Solution 20.4 inch Bar Type LCD Display 1920*830 Support CTP Touch Panel Solution

Large Image :  20.4 inch Bar Type LCD Display 1920*830 Support CTP Touch Panel Solution

Product Details:
Place of Origin: Shenzhen
Brand Name: ROGIN
Model Number: LCMA-RX0204TA01-C035-CTP
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Price is negotiable.
Packaging Details: Cartons or wooden cases
Delivery Time: 6-8 weeks
Payment Terms: T/T,L/C
Supply Ability: Spot adequacy
Contact Now

20.4 inch Bar Type LCD Display 1920*830 Support CTP Touch Panel Solution

Description
Name: Bar Type LCD Display Panel Size: 20.4"
Resolution: 1920*830 Active Area: 478.66(H)x200.1(V)mm
Outline Dimension: 503(H)x243.7(V)x15.1(D)mm Operating Temp.: 0~50℃
Brightness: 350nits (Typ.) Contrast Ratio: 3000:1
Highlight:

20.4 inch Bar Type LCD Display

,

1920*830 Bar LCD Display

,

Bar LCD Display with CTP Touch

20.4 Inch Bar Type LCD Display 1920×830 with CTP Touch Panel Solution

This 20.4 inch bar type LCD display delivers a 1920×830 resolution with support for a CTP (Capacitive Touch Panel) solution. Engineered for industrial and commercial applications, it combines high reliability, customizable brightness, and an extended operational lifespan to meet demanding signage and display requirements.

Product Advantages
  • Equipped with 3 sets of cutting machines and 2 advanced cutting production lines; the longest line supports cutting up to 1.7 meters (75-inch cutting capability).
  • Advanced cutting technology ensures high yield rates and precise dimensional accuracy.
  • High reliability with performance characteristics matching the original panel.
  • High anti-vibration design for stable operation in demanding environments.
  • Brightness customizable from 500 to 2500 nits to suit various lighting conditions.
  • Long lifetime of 50,000 hours (typical), extendable up to 80,000 hours.
Product Applications
  • Commercial signage: advertising displays and price shelves.
  • Public transportation: billboards for buses, metros, and light rail systems.
  • Guidance boards and lift advertising boards.
  • Financial services: bank call notice boards.
  • Name card displays.
  • Advertising boards on taxis.
20.4 inch bar type LCD display showing commercial signage application in advertising shelf
20.4 inch bar type LCD display installed in public transportation billboard for bus or metro
20.4 inch bar type LCD display used as guidance board and lift advertising board
20.4 inch bar type LCD display applied in financial services bank call notice board
Specifications
LCMA-RX0204TA01-C035-CTP
Brand Rogin
Series Bar Type LCD Display
Panel Size 20.4 inch
Model LCMA-RX0204TA01-C035-CTP
Brightness 350 nits
Power Supply 9.98W (Typ.)
Resolution 1920 × 830
Active Area 478.66 (H) × 200.1 (V) mm
Overall Size 503 (H) × 243.7 (V) × 15.1 (D) mm
Viewing Angle IPS
Interface Definition LVDS
Backlight Type WLED
Contrast Ratio 3000:1
Aspect Ratio 23:10
Touch Panel Without
Operating Temperature 0–50 °C
