16.3 inch Bar Type Cutting LCD Display Solution With 1920*285 Resolution

16.3 inch Bar Type Cutting LCD Display Solution With 1920*285 Resolution
16.3 inch Bar Type Cutting LCD Display Solution With 1920*285 Resolution 16.3 inch Bar Type Cutting LCD Display Solution With 1920*285 Resolution

Large Image :  16.3 inch Bar Type Cutting LCD Display Solution With 1920*285 Resolution

Product Details:
Place of Origin: Shenzhen
Brand Name: ROGIN
Model Number: LCMA-RX0163TB01-C150
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Price is negotiable.
Packaging Details: Cartons or wooden cases
Delivery Time: 6-8 weeks
Payment Terms: T/T,L/C
Supply Ability: Spot adequacy
Contact Now

16.3 inch Bar Type Cutting LCD Display Solution With 1920*285 Resolution

Description
Name: Bar Type LCD Display Panel Size: 16.3"
Resolution: 1920*285 Active Area: 408.96(H)x60.71(V)mm
Outline Dimension: 432(H)x85.1(V)x14.8(D)mm Operating Temp.: -20~70℃
Brightness: 1500nits (Typ.) Contrast Ratio: 1200:1
Highlight:

16.3 inch bar type LCD display

,

1920x285 resolution bar LCD

,

bar type cutting LCD solution

Product Overview: 16.3 Inch Bar Type Cutting LCD Display Solution

This 16.3 inch bar type cutting LCD display solution delivers a 1920×285 resolution with a 1500-nit high-brightness panel, purpose-built for commercial signage, public transportation information boards, and industrial display applications. Manufactured by Rogin with advanced cutting technology, it maintains the same reliability and performance characteristics as the original panel.

Product Advantages
  • Equipped with 3 cutting machines and 2 advanced cutting production lines; the longest cutting capability reaches 1.7 m (75 inch cutting).
  • Advanced cutting technology ensures high yield and precision throughout production.
  • High reliability with identical features and performance to the original panel.
  • High anti-vibration design suitable for demanding environments.
  • Brightness customizable from 500 to 2500 nits to meet varied application requirements.
  • Long lifetime of 50,000 hours (Typ), extendable up to 80,000 hours.
Product Applications
  • Commercial signage: advertising displays and price shelves.
  • Public transportation: billboards for buses, metros, and light rail systems.
  • Guidance boards and lift advertising boards.
  • Financial services: bank call notice boards.
  • Name card displays.
  • Advertising boards on taxis.
Product Gallery

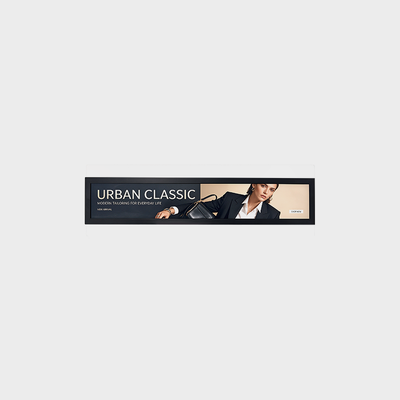

16.3 inch bar type cutting LCD display front view showing 1920x285 resolution panel
16.3 inch bar type LCD display side profile showing slim 14.8mm depth design

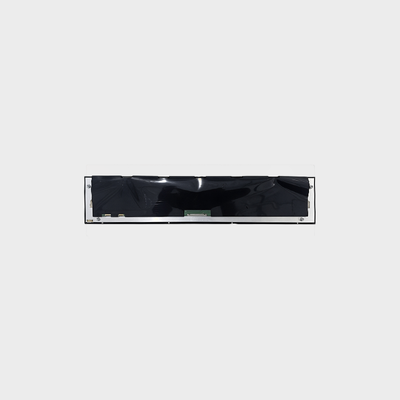

Bar type cutting LCD display module with LVDS interface and WLED backlight
16.3 inch stretched LCD display in commercial signage application
Specifications
LCMA-RX0163TB01-C150
Brand Rogin
Series Bar Type LCD Display
Panel Size 16.3 inch
Model LCMA-RX0163TB01-C150
Brightness 1500 nits
Power Supply 16.8 W (Typ)
Resolution 1920 × 285
Active Area 408.96 (H) × 60.71 (V) mm
Overall Size 432 (H) × 85.1 (V) × 14.8 (D) mm
Viewing Angle IPS
Interface Definition LVDS
Backlight Type WLED
Contrast Ratio 1200:1
Touch Panel Without
Operating Temperature -20 ~ 70 ℃
