13.7 inch Bar Type Cutting TFT Display With 1920*279 Resolution Support Brightness Customization

13.7 inch Bar Type Cutting TFT Display With 1920*279 Resolution Support Brightness Customization
13.7 inch Bar Type Cutting TFT Display With 1920*279 Resolution Support Brightness Customization 13.7 inch Bar Type Cutting TFT Display With 1920*279 Resolution Support Brightness Customization

Large Image :  13.7 inch Bar Type Cutting TFT Display With 1920*279 Resolution Support Brightness Customization

Product Details:
Place of Origin: Shenzhen
Brand Name: ROGIN
Model Number: LCMA-RX0137TQ01-C050
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Price is negotiable.
Packaging Details: Cartons or wooden cases
Delivery Time: 6-8 weeks
Payment Terms: T/T,L/C
Supply Ability: Spot adequacy
Contact Now

13.7 inch Bar Type Cutting TFT Display With 1920*279 Resolution Support Brightness Customization

Description
Name: Bar Type TFT LCD Display Panel Size: 13.7"
Resolution: 1920*279 Brightness: 500 (Typ.)
Operating Temp.: 0~50℃ Storage Temperature: -20~60℃
Active Area: 344.16(H)x50(V)mm Outline Dimension: 371.5(H)x75.93(V)x12.7(D)mm
Highlight:

13.7 inch bar type TFT display

,

1920x279 resolution bar LCD display

,

brightness customization bar type display

The 13.7 inch bar type cutting TFT display delivers a 1920×279 resolution with support for brightness customization, making it an ideal solution for stretched-format industrial and commercial display applications.

Product Advantages
  • Equipped with 3 cutting machines and 2 advanced cutting production lines; the longest line supports cutting up to 1.7 m (75 inch cutting).
  • Advanced cutting technology ensures high yield and precision.
  • High reliability with the same features as the original panel.
  • High anti-vibration performance for demanding installations.
  • Brightness can be customized from 500 to 2500 nits.
  • Long lifetime of 50,000 hours (Typ), extendable up to 80,000 hours.
Product Applications
  • Commercial signage: advertising and price shelves.
  • Public transportation: billboards for buses, metro, and light rail.
  • Guidance boards and lift advertising boards.
  • Financial services: bank call notice boards.
  • Name card displays.
  • Advertising boards on taxis.
Product Gallery

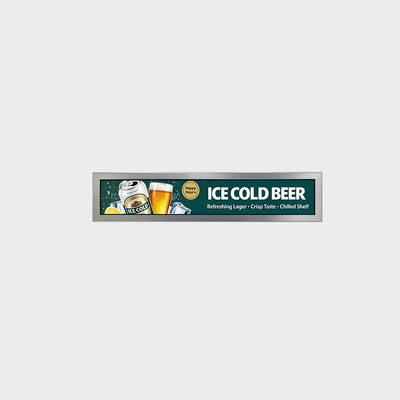

13.7 inch bar type cutting TFT display front view with 1920x279 resolution

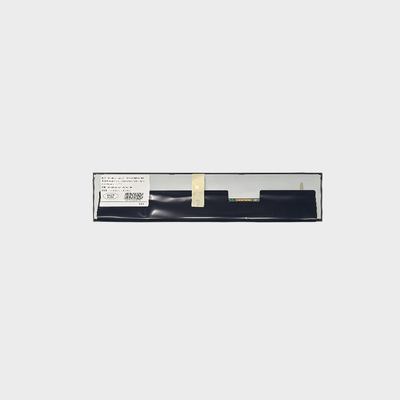

13.7 inch bar type TFT LCD display side profile showing slim design
Bar type cutting TFT display applied in commercial signage and advertising shelf
Stretched bar LCD display used in public transportation billboard application
Specifications

Model: LCMA-RX0137TQ01-C050

Brand Rogin
Series Bar Type TFT LCD Display
Panel Size 13.7 inch
Model LCMA-RX0137TQ01-C050
Brightness 500 nits
Resolution 1920×279
Active Area 344.16 (H) × 50 (V) mm
Overall Size 371.5 (H) × 75.93 (V) × 12.7 (D) mm
Viewing Angle 89/89/89/89
Backlight Type WLED
Contrast Ratio 3000:1
Touch Panel Without
Operating Temperature 0–50 ℃
Storage Temperature -20–60 ℃
