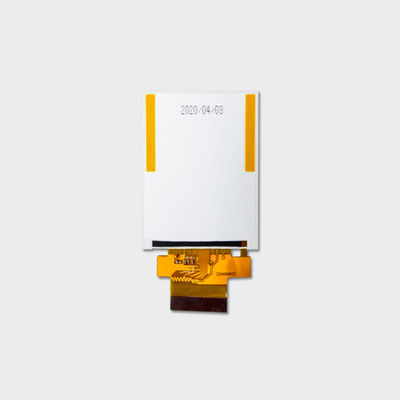

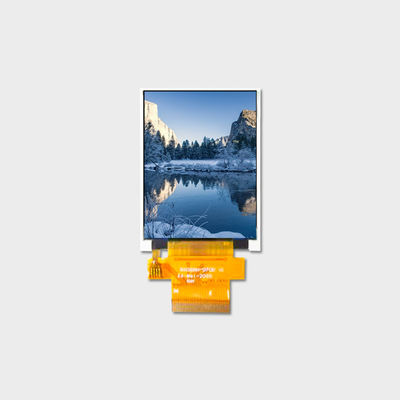

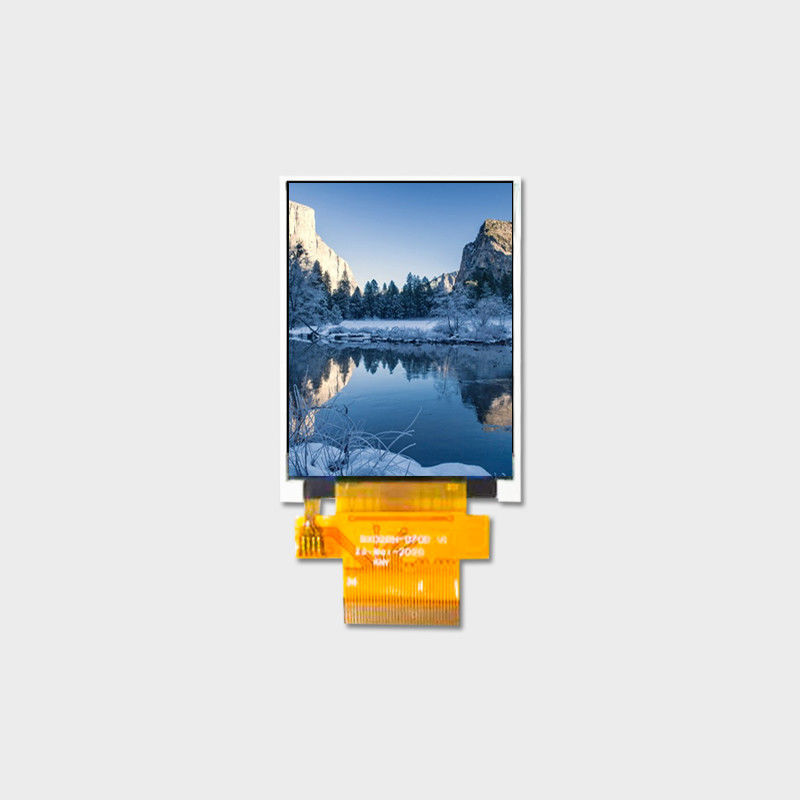

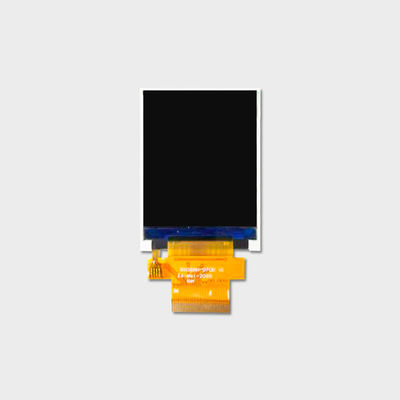

Instrument 2.0 Inch LCD Display 176 RGB *220 MCU LCD Small Display

Large Image : Instrument 2.0 Inch LCD Display 176 RGB *220 MCU LCD Small Display

Product Details:

Place of Origin:	Shenzhen
Brand Name:	ROGIN
Model Number:	RX020H-0700

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Price is negotiable.
Packaging Details:	Cartons or wooden cases
Delivery Time:	6-8 weeks
Payment Terms:	T/T, L/C
Supply Ability:	Spot adequacy

Contact Now

Instrument 2.0 Inch LCD Display 176 RGB *220 MCU LCD Small Display

Description

Name:	Small LCD Display	Panel Size:	2.0"
Resolution:	176(RGB) *220	Brightness:	TBD
Active Area:	31.68*39.60mm	Outline Dimension:	37.6851.302.25mm
Highlight:	Instrument 2.0 Inch LCD Display , MCU LCD Small Display , 2.0 Inch LCD Small Display

2.0 inch Medium and Small LCD Display 176(RGB) *220 MCU

Product Advantage ►

1. Thousand grade clean room, Cover 3000 m2 dust-free workshop.
2. Support small MOQ and LCD/FPC/BL/TP customization.
3. Customized convert board, RBG/LVDS/MIPI/EDP/ HDMI signal conversion.
4. Strict aging test and vibration test.

Product Application ►

1. Educational Learning Machine.
2. Car DVD.
3. Communication Equipments.
4. Handheld Devices.
5. Car Rearview Mirror and Data Recorder.
6. Medical Equipments.
7. Instrument.
8. Instrial Control Display.

Specifications ►

RX020H-0700

Brand	Rogin
Series	Medium and Small Size LCD Display
Panel Size	2.0inch
Model	RX020H-0700
Brightness	TBD
Resolution	176(RGB) *220 dots
Interface	MCU
Display area(AA)	31.68(H) * 39.60(V) mm
Overall size	37.6851.302.25mm
Driver element	a-Si TFT active matrix
Display colors	262K colors
Pixel arrangement	RGB vertical stripe
Pixel pitch	0.18(H) *0.18(V)
Viewing angle	12:00 o'clock
Drive IC	ILI9225G
Display mode	Transmissive/ Normally White
Operating temperature	-20~+70℃
Storage temperature	-30~+80 ℃
