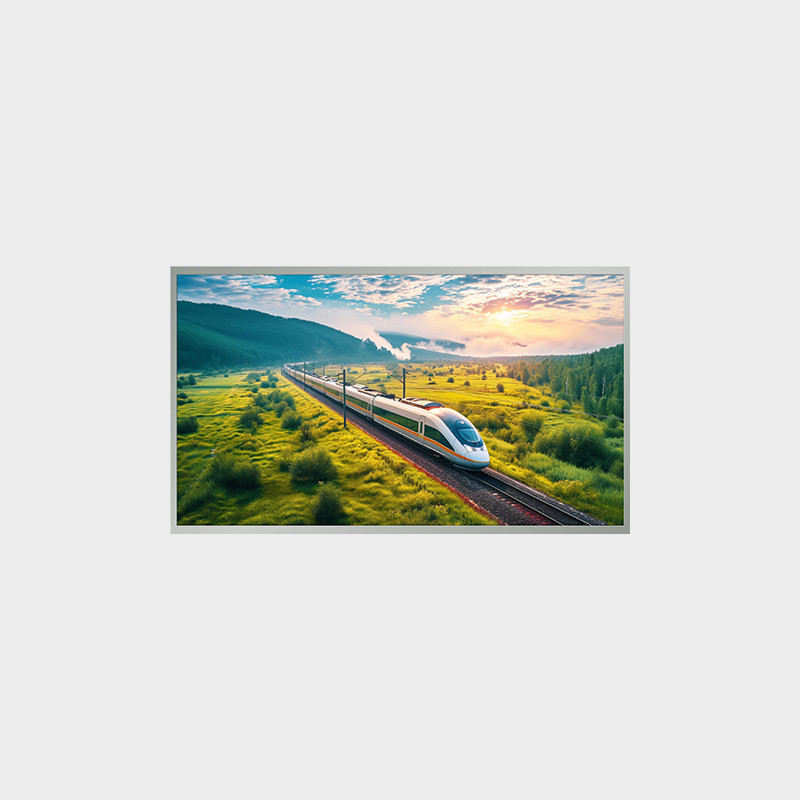

23.8 inch LCD Screen 850nits resolution 2K LCMA-RX0238GI01-C085

Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0238GI01-C085
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 4-6 weeks
Payment Terms T/T,L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 23.8 Inch LCD Screen Panel Size 23.8"
Resolution 1920*1080 Brightness 850 (Typ.)
Operating Temperature 0~50℃ Active Area 527.04*296.46mm
Outline Dimension 543*317.4*11.1mm
Highlight

2K LCD Screen

,

850nits LCD Screen

,

23.8 inch LCD Screen

Leave a Message
Product Description

23.8 inch LCD Screen

Product Features ►


1. Brightness customization 700-5000cd/m2.
2.Outdoor sunlight readable.
3. Low power consumption.
4.High uniformity up to 85% .
5.Aluminium backlight structure with good heat dissipation.
6.Wide temperature range up to -30°C-80°C.
7.High shock resistance and high stability.

Product Application


1.Bus Stop Station.
2.Intelligent Charging Pile.
3.Outdoor Electronic News Reading Board.
4.Intelligent Express Cabinet.
5.Vending Machine.
6.Commercial Advertising Machine.
7.Attractions Information Inquiry Machine.
8.Community Information Board.

23.8 inch LCD Screen 850nits resolution 2K LCMA-RX0238GI01-C085 0 23.8 inch LCD Screen 850nits resolution 2K LCMA-RX0238GI01-C085 1 23.8 inch LCD Screen 850nits resolution 2K LCMA-RX0238GI01-C085 2 23.8 inch LCD Screen 850nits resolution 2K LCMA-RX0238GI01-C085 3

Date sheet


LCMA-RX0238GI01-C085

  Brand   Rogin
  Series   High Brightness LCD Screen
  Panel Size
  23.8 inch
  Model
  LCMA-RX0238GI01-C085
  Brightness
  850
  Resolution
  1920*1080

  Active Area

  527.04*296.46mm
 Overall Size   543*317.4*11.1mm
  Viewing Angle
  89/89/89/89
  Interface Definition
  LVDS (2 ch, 8-bit)
  Contrast Ratio
  1000:1
  Aspect Ratio
  16:9
  Touch Panel   Without
  Operating Temperature
  0~50℃
