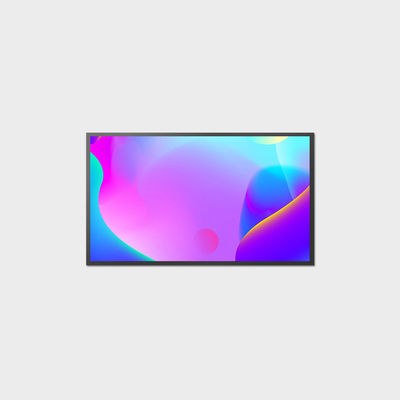

32 Inch TFT Display With 1500nits High Lumin Support Touch Panel LCMA-RX0320GB01-C150
Product Details
| Name | TFT LCD Display | Panel Size | 32" |
|---|---|---|---|
| Resolution | 1920*1080 | Brightness | 1500 (Typ.) |
| Operating Temp. | -20-70℃ | Active Area | 698.4*392.85mm |
| Outline Dimension | 729.4*424.2*29.5mm | ||
| Highlight | 32 inch TFT display with touch panel,high brightness LCD display 1500nits,TFT display with high luminance support |
||
Product Description
32 Inch TFT Display With 1500nits High Lumin Support Touch Panel LCMA-RX0320GB01-C150
Product Attributes
| Attribute | Value |
|---|---|
| Name | TFT LCD Display |
| Panel Size | 32" |
| Resolution | 1920*1080 |
| Brightness | 1500 (Typ.) |
| Operating Temp. | -20-70℃ |
| Active Area | 698.4*392.85mm |
| Outline Dimension | 729.4*424.2*29.5mm |
Product Description
32 Inch TFT Display With 1500nits High Lumin Support Touch Panel LCMA-RX0320GB01-C150
Product Advantages
- 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
- Advanced cutting technology to ensure the yield and precision.
- High reliability with same features as original panel.
- High Anti-vibration.
- Brightness can be customized (500-2500nit).
- Long life time 50K hours(Typ), up to 80K hours.
Product Applications
- Commercial signage: Advertising and Price Shelves.
- Public transportation: Bill board for Bus/Metro and light rail.
- Guidance board, Lift advertising board.
- Financial services. Bank call notice board.
- Name card.
- Advertising board on taxi.
Specifications
LCMA-RX0320GB01-C150
| Brand | Rogin |
| Series | LCD Display |
| Panel Size | 32 inch |
| Model | LCMA-RX0320GB01-C150 |
| Brightness | 1500 |
| Power Consumption | 76.5W |
| Resolution | 1920*1080 |
| Active Area | 698.4*392.85mm |
| Overall Size | 729.4*424.2*29.5mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1200:1 |
| Aspect Ratio | 16:9 |
| Touch Panel | Without |
| Operating Temperature | -20~70 ℃ |
