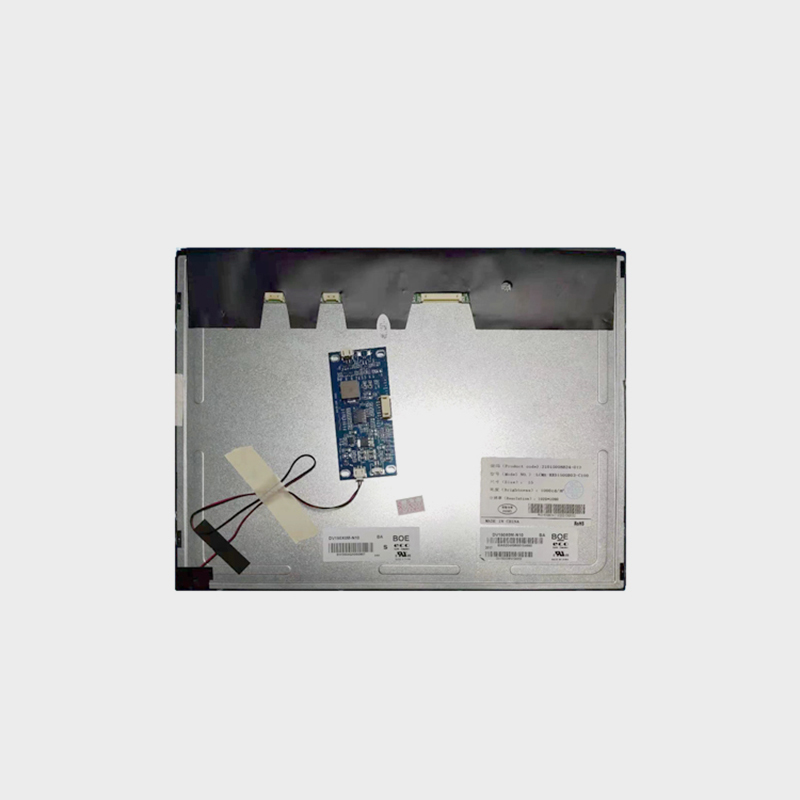

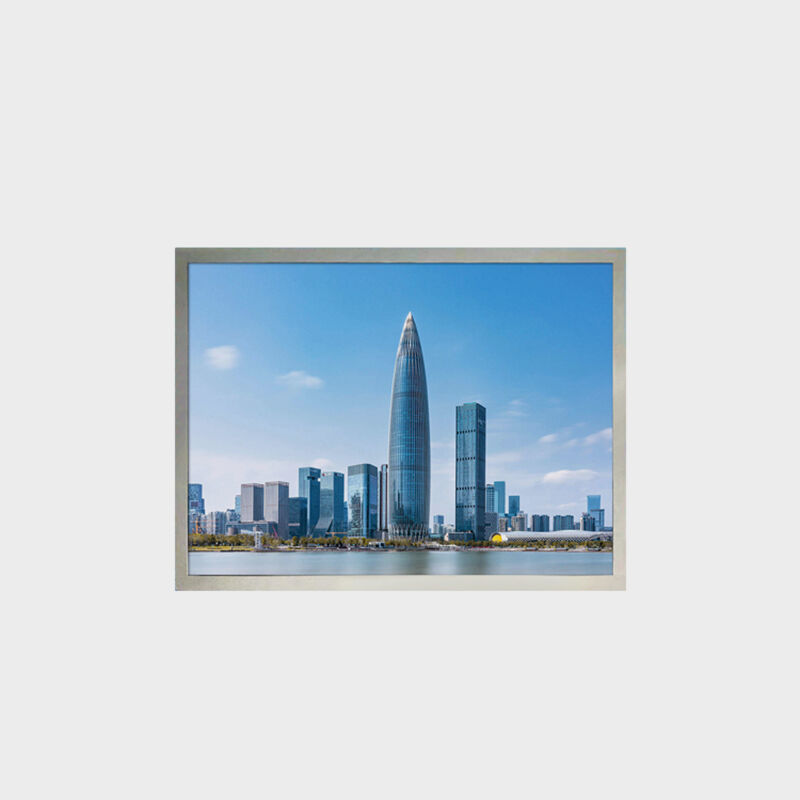

15 Inch TFT LCD Display With Wide Temperature Solution 1024*768 Resolution
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 15 Inch LCD Display Panel | Panel Size | 15" |
|---|---|---|---|
| Resolution | 1024*768 | Brightness | 1000 (Typ.) |
| Aspect Ratio | 4:3 | Active Area | 304.128*228.096mm |
| Outline Dimension | 326.5*253.5*9.7mm | Interface | LVDS (1 Ch, 8-bit) |
| Highlight | 15 inch TFT LCD display,wide temperature LCD display,high brightness TFT screen |
||
Product Description
15 Inch TFT LCD Display With Wide Temperature Solution 1024*768 Resolution
Product Advantage
- Brightness customization 700-5000cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime, 50K hours (Typ), up to 80K hours
- Aluminium backlight structure with good heat dissipation
- Wide temperature range up to -30°C-80°C
- High shock resistance and high stability
Product Application
- Bus Station Signage Board
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising Machine
- Attractions Information Inquiry Machine
- Community Information Board
Specifications
| Model | LCMA-RX0150GB03-C100 |
|---|---|
| Brand | Rogin |
| Series | High Brightness LCD Display |
| Panel Size (inch) | 15 |
| Brightness | 1000nits |
| Power Consumption (W) | 16.6 |
| Resolution | 1024*768 |
| Active Area | 304.128*228.096mm |
| Overall Size | 326.5*253.5*9.6mm |
| Viewing Angle | 88/88/88/88 |
| Interface Definition | LVDS (1 ch, 6/8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 4:3 |
| Touch Panel | Without |
| Operating Temperature | -20~70℃ |
