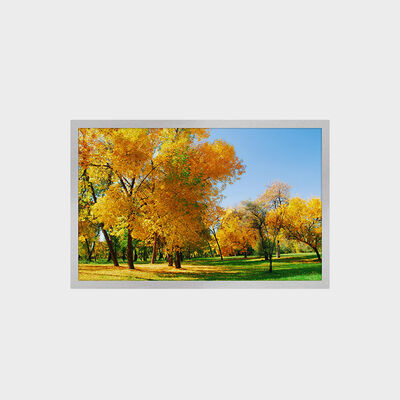

12.1 Inch TFT LCD Display With 1280*800 Resolution 16:9 LVDS Inerface 1500nits
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 12.1 Inch TFT LCD Display | Panel Size | 12.1" |
|---|---|---|---|
| Resolution | 1280*800 | Brightness | 1500 (Typ.) |
| Aspect Ratio | 16:10 | Active Area | 261.12*163.2mm |
| Outline Dimension | 278*184*11mm | Interface | LVDS (1 Ch, 8-bit) |
| Highlight | 12.1 inch TFT LCD display,1280x800 resolution LCD screen,1500nits high brightness display |
||
Product Description
12.1 Inch TFT LCD Display With 1280×800 Resolution 16:9 LVDS Interface 1500nits
12.1 Inch TFT LCD Display With 1280×800 Resolution 16:9 LVDS Interface 1500nits
Product Advantages
- Brightness customization 700-5000cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime, 50K hours (Typ), up to 80K hours
- Aluminium backlight structure with good heat dissipation
- Wide temperature range up to -30°C to 80°C
- High shock resistance and high stability
Product Applications
- Bus Station Signage Board
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising Machine
- Attractions Information Inquiry Machine
- Community Information Board
Specifications
| Model | LCMA-RX0121GI01-C150 |
| Brand | Rogin |
| Series | High Brightness LCD Display |
| Panel Size (inch) | 12.1 |
| Brightness | 1500 |
| Resolution | 1280×800 |
| Active Area | 261.12×163.2mm |
| Overall Size | 278×184×11mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | LVDS (1 ch, 6/8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 16:10 |
| Touch Panel | Without |
| Operating Temperature | -20°C to 70°C |
