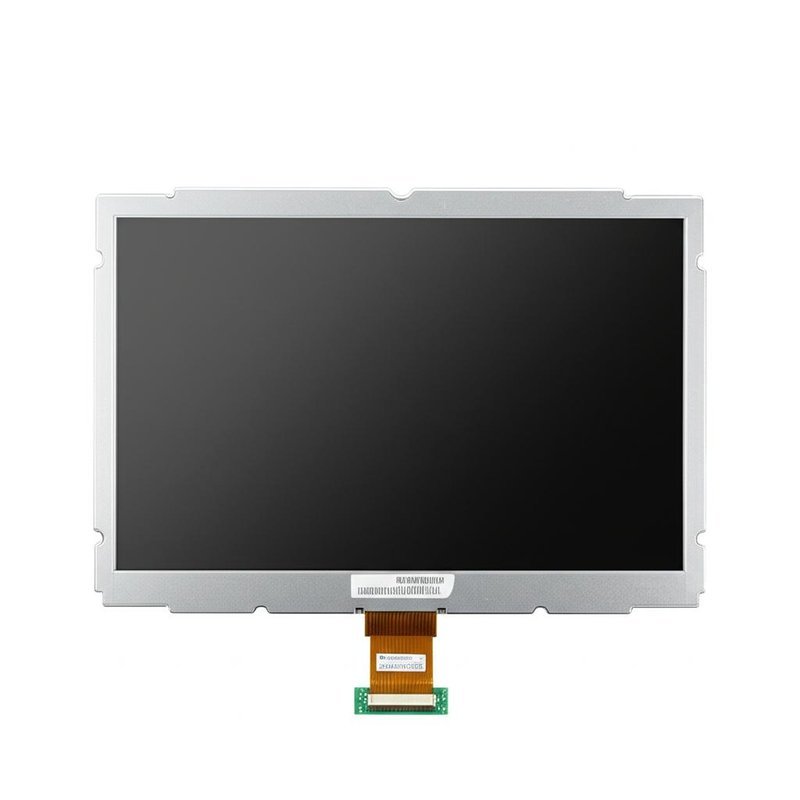

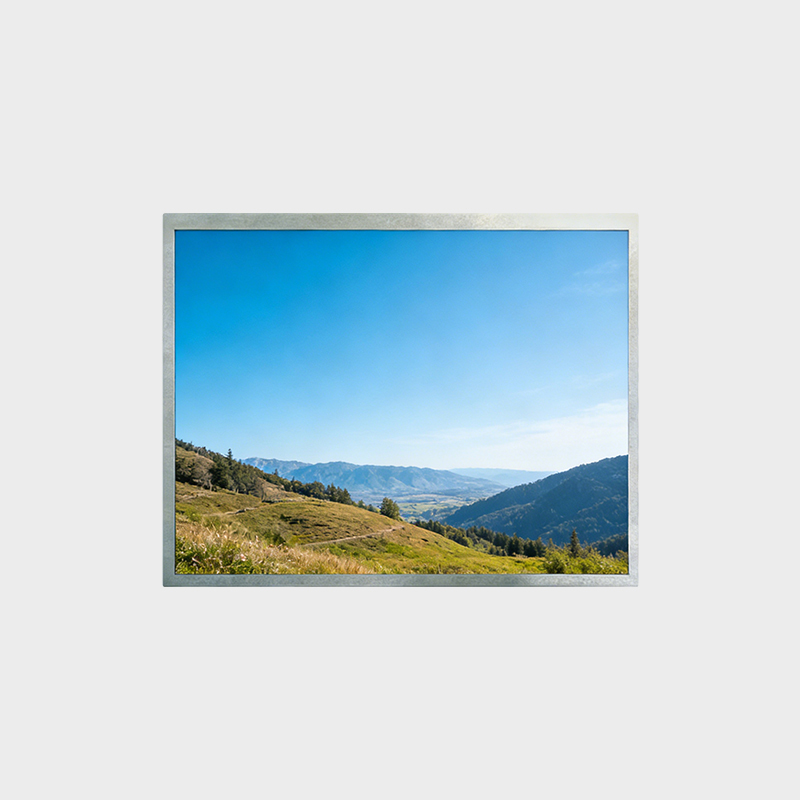

12.1 Inch TFT LCD Display Support High Temperature Environment Project.

  • 12.1 Inch TFT LCD Display Support High Temperature Environment Project.
  • 12.1 Inch TFT LCD Display Support High Temperature Environment Project.
Place of Origin Shenzhen
Brand Name ROGIN
Model Number LCMA-RX0121GR01-C100
Minimum Order Quantity 5
Price Price is negotiable.
Packaging Details Cartons or wooden cases
Delivery Time 6-8 weeks
Payment Terms T/T,L/C
Supply Ability Spot adequacy

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 12.1 Inch TFT LCD Display Panel Size 12.1"
Resolution 1024*768 Brightness 1000 (Typ.)
Aspect Ratio 4:3 Active Area 245.76*184.32mm
Outline Dimension 260.5*204*8.46mm Interface LVDS (1 Ch, 6/8-bit)
Highlight

12.1 inch high temperature TFT LCD

,

high brightness LCD display

,

industrial high temperature LCD screen
Leave a Message
Product Description
12.1 Inch TFT LCD Display Support High Temperature Environment Project
Product Description

High-performance 12.1-inch TFT LCD display engineered for demanding high-temperature environments with exceptional reliability and durability.

Product Advantages
  • Brightness customization 700-5000 cd/m²
  • Outdoor sunlight readable
  • Low power consumption
  • High uniformity up to 85%
  • Long lifetime: 50K hours (Typical), up to 80K hours
  • Aluminium backlight structure with excellent heat dissipation
  • Wide temperature range: -30°C to 80°C
  • High shock resistance and stability
Product Applications
  • Bus Station Signage Board
  • Intelligent Charging Pile
  • Outdoor Electronic News Reading Board
  • Intelligent Express Cabinet
  • Vending Machine
  • Commercial Advertising Machine
  • Attractions Information Inquiry Machine
  • Community Information Board
12.1 Inch TFT LCD Display Support High Temperature Environment Project. 0 12.1 Inch TFT LCD Display Support High Temperature Environment Project. 1 12.1 Inch TFT LCD Display Support High Temperature Environment Project. 2 12.1 Inch TFT LCD Display Support High Temperature Environment Project. 3
Specifications
Model LCMA-RX0121GR01-C100
Brand Rogin
Series High Brightness LCD Display
Panel Size 12.1 inch
Brightness 1000 nits
Resolution 1024 × 768
Active Area 245.76 × 184.32 mm
Overall Size 260.5 × 204 × 8.46 mm
Viewing Angle 88/88/88/88
Interface Definition LVDS (1 ch, 6/8-bit)
Backlight Type WLED
Contrast Ratio 1000:1
Aspect Ratio 4:3
Touch Panel Without
Operating Temperature -30°C to 80°C
