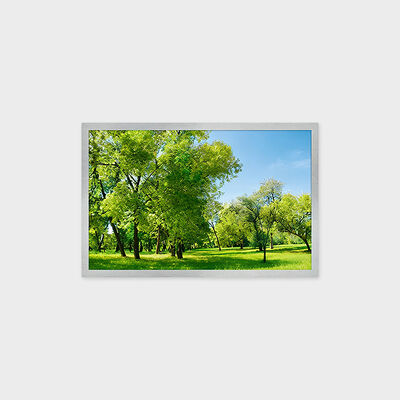

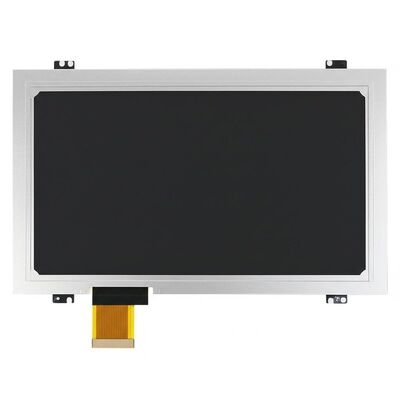

12.1 Inch TFT LCD Display With 1280*800 Resolution IPS With LVDS Interface
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 12.1 Inch TFT LCD Display | Panel Size | 12.1" |
|---|---|---|---|
| Resolution | 1280*800 | Brightness | 1500 (Typ.) |
| Aspect Ratio | 16:9 | Active Area | 261.12*163.2mm |
| Outline Dimension | 277.7*180.6*9.5mm | Interface | LVDS (1 Ch, 8-bit) |
| Highlight | 12.1 inch TFT LCD display,1280x800 resolution IPS display,LVDS interface LCD screen |
||
Product Description
12.1 Inch TFT LCD Display With 1280×800 Resolution IPS With LVDS Interface
Product Advantages
- Brightness customization 700-5000cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime, 50K hours (Typ), up to 80K hours
- Aluminium backlight structure with good heat dissipation
- Wide temperature range up to -30°C to 80°C
- High shock resistance and high stability
Product Applications
Bus Station Signage Board
Intelligent Charging Pile
Outdoor Electronic News Reading Board
Intelligent Express Cabinet
Vending Machine
Commercial Advertising Machine
Attractions Information Inquiry Machine
Community Information Board
Specifications
LCMA-RX0121GR03-C150
| Brand | Rogin |
| Series | High Brightness LCD Display |
| Panel Size (inch) | 12.1 |
| Model | LCMA-RX0121GR03-C150 |
| Brightness | 1500nits |
| Resolution | 1280×800 |
| Active Area | 261.12×163.2mm |
| Overall Size | 277.7×180.6×9.5mm |
| Viewing Angle | 85/85/85/85 |
| Interface Definition | LVDS (1 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1200:1 |
| Aspect Ratio | 16:9 |
| Touch Panel | Without |
| Operating Temperature | -20°C to 70°C |
