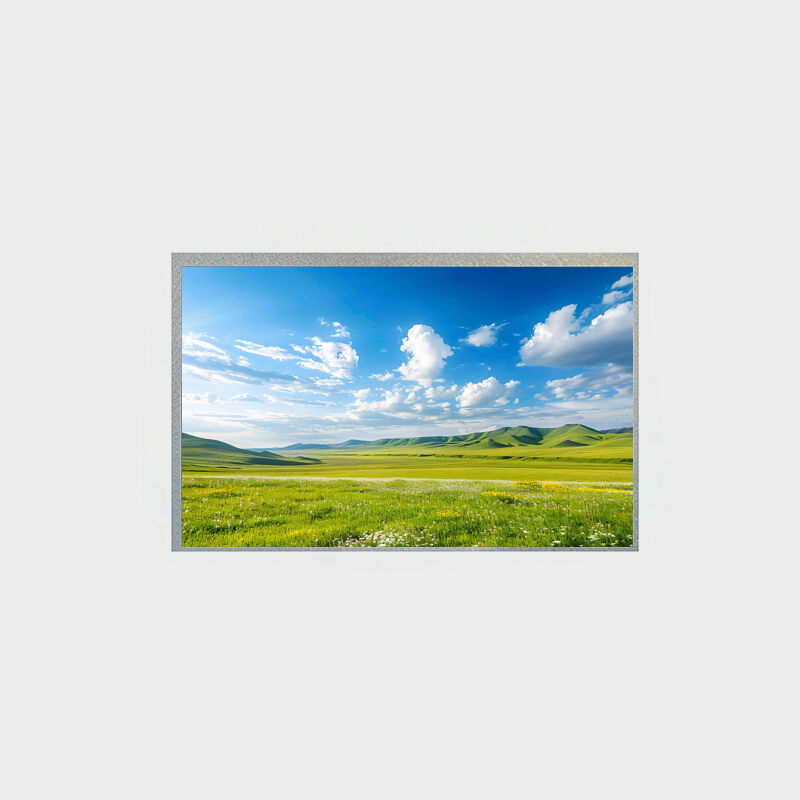

10.1 Inch With High Contrast Ratio LCD for Industrial Equipment Displays
Product Details
| Name | 10.1 Inch TFT LCD Display | Panel Size | 10.1" |
|---|---|---|---|
| Resolution | 1280*800 | Brightness | 1500 (Typ.) |
| Aspect Ratio | 16:9 | Active Area | 216.96*135.6mm |
| Outline Dimension | 228.5*149*4.45mm | Interface | LVDS (1 Ch, 8-bit) |
| Highlight | 10.1 inch industrial LCD display,high contrast ratio LCD screen,high brightness LCD for equipment |
||
Product Description
10.1 Inch High Contrast Ratio LCD for Industrial Equipment Displays
High-performance 10.1-inch LCD display engineered for demanding industrial environments with exceptional brightness and reliability.
Product Advantages
- Brightness customization: 700-5000 cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime: 50K hours (Typical), up to 80K hours
- Aluminium backlight structure with excellent heat dissipation
- Wide temperature range: -30°C to 80°C
- High shock resistance and stability
Product Applications
- Bus Station Signage Board
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising Machine
- Attractions Information Inquiry Machine
- Community Information Board
Specifications
LCMA-RX0101GB02-C150
| Brand | Rogin |
|---|---|
| Series | High Brightness LCD Display |
| Panel Size (inch) | 10.1 |
| Model | LCMA-RX0101GB02-C150 |
| Brightness | 1500 nits |
| Resolution | 1280 × 800 |
| Active Area | 216.96 × 135.6 mm |
| Overall Size | 228.5 × 149 × 4.45 mm |
| Viewing Angle | 80/80/80/80 |
| Interface Definition | LVDS (1 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 16:9 |
| Touch Panel | Without |
| Operating Temperature | -20°C to 70°C |
