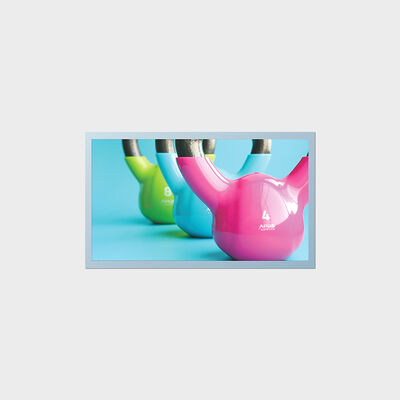

15.6 Inch Support 1000nits Durable LCD Display for Outdoor Industrial Use
Product Details
| Name | 15.6 Inch TFT LCD Display | Panel Size | 15.6" |
|---|---|---|---|
| Resolution | 1920*1080 | Brightness | 1000 (Typ.) |
| Aspect Ratio | 16:9 | Active Area | 344.16*193.59mm |
| Outline Dimension | 363.8*215.9*8.8mm | Interface | EDP (2 Lanes) |
| Power | 16W | Application | Smart Home/Industrial Equipment/Medical Devices |
| Highlight | 15.6 inch high brightness LCD display,1000nits durable outdoor LCD screen,industrial LCD display with warranty |
||
Product Description
15.6 Inch Support 1000nits Durable LCD Display for Outdoor Industrial Use
15.6 Inch Support 1000nits Durable LCD Display for Outdoor Industrial Use
Product Advantages
- Brightness customization 700-5000cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime, 50K hours (Typ), up to 80K hours
- Aluminium backlight structure with good heat dissipation
- Wide temperature range up to -30°C to 80°C
- High shock resistance and high stability
Product Applications
- Bus Station Signage Board
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending HMI Machine
- Commercial Advertising Machine
- Attractions Information Inquiry Machine
- Community Information Board
Specifications
| Model | LCMA-RX0156GA02-C100 |
|---|---|
| Brand | Rogin |
| Series | High Brightness LCD Display |
| Panel Size (inch) | 15.6 |
| Brightness | 1000nits |
| Resolution | 1920×1080 |
| Active Area | 344.16×193.59mm |
| Overall Size | 363.8×215.9×8.8mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | eDP (2 Lanes) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 16:9 |
| Touch Panel | Without |
| Operating Temperature | -20°C to 70°C |
