23.8 Inch TFT Display High Reliability LCD for Outdoor Instrument Panels
Product Details
| Name | 23.8 Inch TFT LCD Display | Panel Size | 23.8" |
|---|---|---|---|
| Resolution | 1920*1080 | Brightness | 1500 (Typ.) |
| Aspect Ratio | 16:9 | Active Area | 527.04*296.46mm |

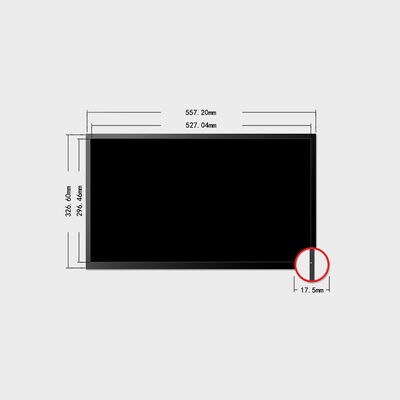

| Outline Dimension | 557.2*326.6*17.5mm | Interface | LVDS (2 Ch, 8-bit) |
| Power | 58W | Application | Smart Home/Industrial Equipment/Medical Devices |
| Highlight | 23.8 inch TFT LCD display,high brightness LCD for outdoor,instrument panel LCD display |
||
Product Description
23.8 Inch TFT Display High Reliability LCD for Outdoor Instrument Panels
Product Advantages
- Brightness customization 700-5000 cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime: 50K hours (Typical), up to 80K hours
- Aluminium backlight structure with good heat dissipation
- Wide temperature range: -30°C to 80°C
- High shock resistance and high stability
Product Applications
- Bus Station Signage Board
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending HMI Machine
- Commercial Advertising Machine
- Attractions Information Inquiry Machine
- Community Information Board
Specifications
Model: LCMA-RX0238GA01-C150
| Brand | Rogin |
|---|---|
| Series | High Brightness LCD Display |
| Panel Size (inch) | 23.8 |
| Model | LCMA-RX0238GA01-C150 |
| Brightness | 1500 nits |
| Resolution | 1920 × 1080 |
| Active Area | 527.04 × 296.46 mm |
| Overall Size | 557.2 × 326.6 × 17.5 mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 3000:1 |
| Aspect Ratio | 16:9 |
| Touch Panel | Without |
| Operating Temperature | 0°C to 50°C |
