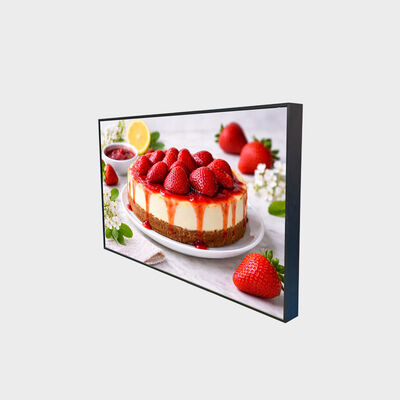

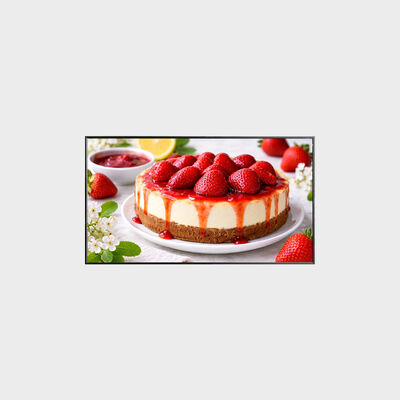

43inch High Brightness TFT Display With Direct Type Backlight Solution Support 3500nits
Product Details
| Panel Size | 43" | Resolution | 1920*1080 |
|---|---|---|---|
| Brightness | 3500 (Typ.) | Operating Temperature | -20~70°C |
| Active Area | 940.9*529.25mm | Outline Dimension | 966.8*554.8*60.7mm |
| Viewing Angle | 89/89/89/89 | ||
| Highlight | 43inch high brightness TFT display,direct type backlight LCD display,3500nits brightness TFT screen |
||
Product Description
43-inch High Brightness TFT Display with Direct Type Backlight Solution
Product Overview
This 43-inch high brightness TFT display features a direct type backlight solution supporting up to 3500 nits brightness, designed for demanding outdoor and industrial applications.
Key Features
- Brightness customization range: 700-5000 cd/m²
- Outdoor sunlight readable performance
- Low power consumption design
- High uniformity up to 85%
- Aluminium backlight structure with excellent heat dissipation
- Wide temperature range: -30°C to 80°C
- High shock resistance and operational stability
Product Applications
- Bus station signage boards
- Intelligent charging piles
- Outdoor electronic news reading boards
- Intelligent express cabinets
- Vending machines
- Commercial advertising machines
- Attractions information inquiry machines
- Community information boards
Technical Specifications
| Model Number | LCMA-RX0430GB13-Z350 V1 |
| Brand | Rogin |
| Series | High Brightness LCD Display |
| Panel Size | 43 inch |
| Brightness | 3500 nits |
| Resolution | 1920 × 1080 |
| Active Area | 940.9 × 529.25 mm |
| Overall Size | 966.8 × 554.8 × 60.7 mm |
| Viewing Angle | 89°/89°/89°/89° |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1200:1 |
| Aspect Ratio | 16:9 |
| Touch Panel | Without |
| Operating Temperature | -20°C to 70°C |
