7.0 Inch Medium & Small LCD Display 1024*600 RGB Display With Touch Panel

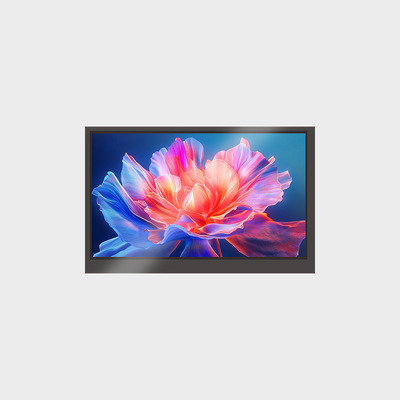

Large Image : 7.0 Inch Medium & Small LCD Display 1024*600 RGB Display With Touch Panel

Product Details:

Place of Origin:	Shenzhen
Brand Name:	ROGIN
Model Number:	RX070I-3501-CTP

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Price is negotiable.
Packaging Details:	Cartons or wooden cases
Delivery Time:	6-8 weeks
Payment Terms:	T/T,L/C
Supply Ability:	Spot adequacy

Contact Now

7.0 Inch Medium & Small LCD Display 1024*600 RGB Display With Touch Panel

Description

Panel Size:	7.0"	Name:	Small LCD Display
Resolution:	1024(RGB)*600	Brightness:	500 (Typ.)
Active Area:	153.6(W) X 90.0(H) Mm	Outline Dimension:	165.7(W) X 105.4(H) X 5.7(D)mm
Highlight:	7 inch LCD display with touch panel , small size LCD display 1024x600 , medium RGB LCD display touchscreen

7.0 Inch Medium & Small LCD Display 1024×600 RGB Display With Touch Panel

High-quality 7.0-inch LCD display featuring 1024×600 RGB resolution with integrated touch panel, designed for reliable performance across various industrial and commercial applications.

Product Advantages

Thousand-grade clean room facility covering 3000 m² dust-free workshop
Support for small MOQ and comprehensive LCD/FPC/BL/TP customization
Customized converter boards for RGB/LVDS/MIPI/EDP/HDMI signal conversion
Rigorous aging tests and vibration testing for enhanced durability

Product Applications

Educational Learning Machines
Car DVD Systems
Communication Equipment
Handheld Devices
Car Rearview Mirrors and Data Recorders
Medical Equipment
Instrumentation
Industrial Control Displays

Technical Specifications

Model: RX070I-3501-CTP

Brand	Rogin
Series	Medium and Small Size LCD Display
Panel Size	7.0 inch
Brightness	500 cd/m²
Resolution	1024(RGB)×600 dots
Interface	LVDS
Display Area (AA)	153.6(W) × 90.0(H) mm
Overall Size	165.7(W) × 105.4(H) × 5.7(D) mm
Driver Element	a-Si TFT active matrix
Display Colors	16.7M colors
Pixel Arrangement	RGB-stripe
Pixel Pitch	0.05(W) × 0.15(H) mm
Viewing Angle	6 O'CLOCK
Drive IC	FT5316
Display Mode	Transmissive
Operating Temperature	-15~70℃
Storage Temperature	-20~70℃

Tag:

Contact Person: Kelvin Zhu

Tel: +86 15919061504
