10.1 Inch LCD Display With 1280*800 Resolution Support 500nits Brightness

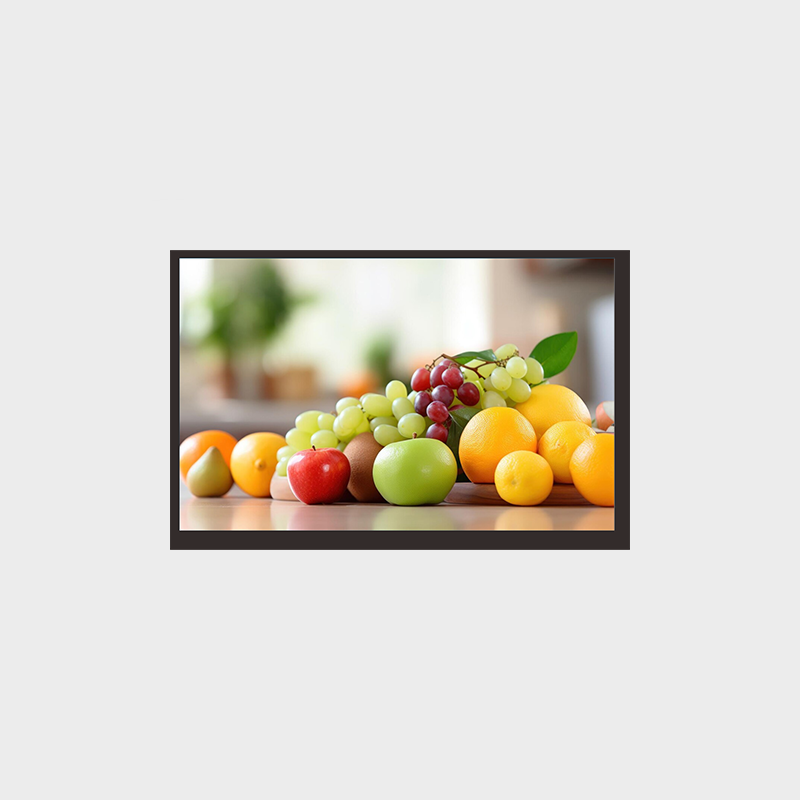

Large Image : 10.1 Inch LCD Display With 1280*800 Resolution Support 500nits Brightness

Product Details:

Place of Origin:	Shenzhen
Brand Name:	ROGIN
Model Number:	RX101B-1200

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Price is negotiable.
Packaging Details:	Cartons or wooden cases
Delivery Time:	6-8 weeks
Payment Terms:	T/T,L/C
Supply Ability:	Spot adequacy

Contact Now

10.1 Inch LCD Display With 1280*800 Resolution Support 500nits Brightness

Description

Panel Size:	10.1"	Name:	Small LCD Display
Resolution:	1280*800	Brightness:	500cd/m2(Typ.)
Active Area:	216.96(H) * 135.6(V) Mm	Outline Dimension:	229.46W) X 149.1(H) X 4.53(D)mm
Highlight:	10.1 inch LCD display 1280x800 resolution , small size LCD display 500nits brightness , LCD display with high brightness support

10.1 Inch LCD Display With 1280×800 Resolution and 500nits Brightness

High-performance 10.1-inch LCD display featuring 1280×800 resolution and 500cd/m² brightness for exceptional visual clarity in various applications.

Product Advantages

Thousand-grade clean room environment covering 3000 m² dust-free workshop
Support for small MOQ and comprehensive customization (LCD/FPC/BL/TP)
Customized converter boards for RGB/LVDS/MIPI/EDP/HDMI signal conversion
Rigorous aging tests and vibration testing for reliability

Product Applications

Educational Learning Machines
Car DVD Systems
Communication Equipment
Handheld Devices
Car Rearview Mirrors and Data Recorders
Medical Equipment
Instrumentation
Industrial Control Displays

Technical Specifications

Model	RX101B-1200
Brand	Rogin
Series	Medium and Small Size LCD Display
Panel Size	10.1 inch
Brightness	500 cd/m²
Resolution	1280(RGB)×800 dots
Interface	RGB
Display Area (AA)	216.96(H) × 135.6(V) mm
Overall Size	229.46(W) × 149.1(H) × 4.53(D) mm
Driver Element	a-Si TFT active matrix
Display Colors	16.7M colors
Pixel Arrangement	RGB-stripe
Pixel Pitch	0.1695 × 0.1695 mm
Viewing Angle	ALL
Display Mode	Transmissive
Operating Temperature	-20~70℃
Storage Temperature	-30~80℃
