7 inch Middle Size TFT Solution With 1400nits High Birghtness Solution

7 inch Middle Size TFT Solution With 1400nits High Birghtness Solution
7 inch Middle Size TFT Solution With 1400nits High Birghtness Solution 7 inch Middle Size TFT Solution With 1400nits High Birghtness Solution

Large Image :  7 inch Middle Size TFT Solution With 1400nits High Birghtness Solution

Product Details:
Place of Origin: Shenzhen
Brand Name: ROGIN
Model Number: LCMA-RX0070GI01-C140
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Price is negotiable.
Packaging Details: Cartons or wooden cases
Delivery Time: 6-8 weeks
Payment Terms: T/T,L/C
Supply Ability: Spot adequacy
Contact Now

7 inch Middle Size TFT Solution With 1400nits High Birghtness Solution

Description
Name: 7 Inch LCD Display Panel Size: 7.0"
Resolution: 800*480 Brightness: 1400 (Typ.)
Active Area: 152.5(H)x91.2(V)mm Outline Dimension: 166(H)x107(V)x1.0(D)mm
 Power Supply Voltage OC: 3.3V  Power Supply Voltage BL: 25.4V
Highlight:

7 inch TFT LCD display

,

1400nits high brightness LCD

,

middle size TFT solution

7 Inch Middle Size TFT Solution with 1400nits High Brightness

A high-brightness 7 inch TFT LCD display solution engineered for reliable performance in demanding industrial, automotive, and medical environments. Delivering 1400nits brightness with an 800×480 resolution and RGB interface, this module is built for clear visibility and long-term durability.

Product Advantages
  • Thousand-grade clean room production covering a 3000 m² dust-free workshop.
  • Supports small MOQ with LCD, FPC, backlight, and touch panel customization.
  • Customized converter boards supporting RGB, LVDS, MIPI, EDP, and HDMI signal conversion.
  • Strict aging tests and vibration tests ensure consistent quality and reliability.
Product Applications
  • Educational learning machines
  • Car DVD systems
  • Communication equipment
  • Handheld devices
  • Car rearview mirrors and data recorders
  • Medical equipment
  • Instruments
  • Industrial control displays

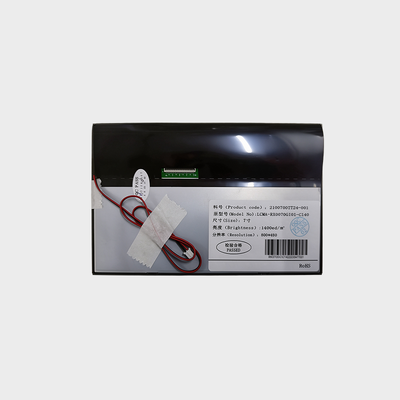

7 inch 1400nits high brightness TFT LCD display module front view
7 inch TFT LCD display module side profile showing panel thickness
7 inch high brightness TFT display with RGB interface and backlight

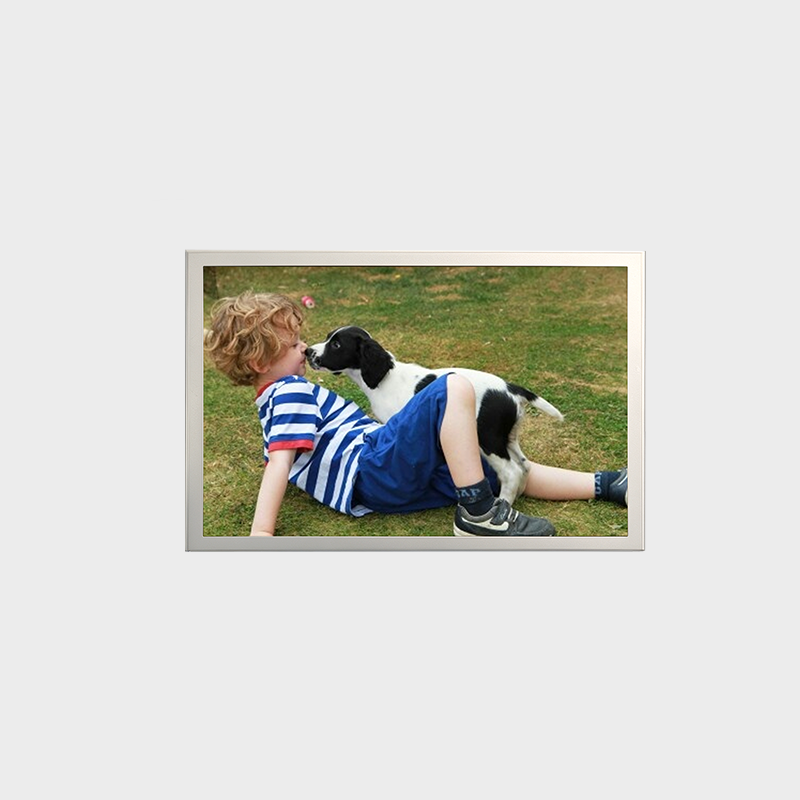

7 inch industrial TFT LCD screen displaying sample content
Specifications
LCMA-RX0070GI01-C140 Technical Specifications
Brand Rogin
Series Medium and Small Size LCD Display
Panel Size 7 inch
Model LCMA-RX0070GI01-C140
Brightness 1400nits
Resolution 800 × 480
Interface RGB
Display Area (AA) 152.5 (H) × 91.2 (V) mm
Overall Size 166 (H) × 107 (V) × 1.0 (D) mm
Driver Element a-Si TFT active matrix
Display Colors 262K colors
Pixel Arrangement RGB vertical stripe
Pixel Pitch 0.1905 × 0.1905 mm
Power Supply Voltage (OC) 3.3V
Power Supply Voltage (BL) 25.4V
Contrast Ratio 1000:1
Operating Temperature -20 ~ +70℃
Storage Temperature -30 ~ +80℃
