Medical Equipments 3.5 Inch LCD Display Screen 320 ( RGB ) *480 SPI 300nits
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 3.5 Inch LCD Display | Panel Size | 3.5" |
|---|---|---|---|
| Resolution | 320(RGB) *480 | Brightness | 300 (Typ.) |
| Active Area | 48. 96*73.44mm | Outline Dimension | 54.48*84.71*2.15mm |
| Highlight | Medical Equipments 3.5 Inch LCD Display,3.5 Inch LCD Display Screen,3.5 Inch LCD Screen Display |
||
Product Description

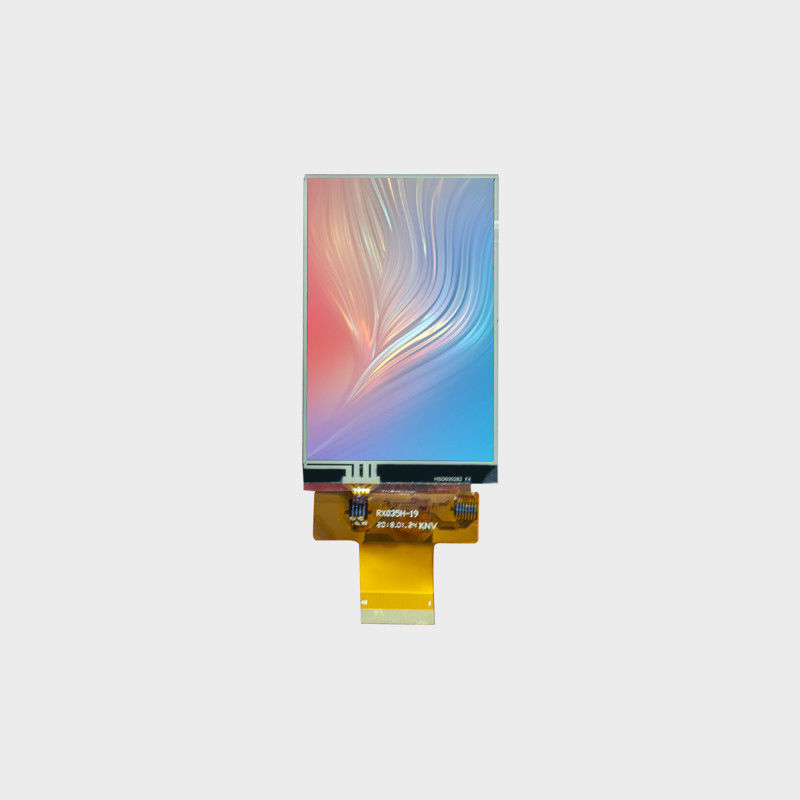

3.5 inch Medium and Small LCD Display 320(RGB) *480 SPI 300nits
Product Advantage ►
1. Thousand grade clean room, Cover 3000 m2 dust-free workshop.
2. Support small MOQ and LCD/FPC/BL/TP customization.
3. Customized convert board, RBG/LVDS/MIPI/EDP/ HDMI signal conversion.
4. Strict aging test and vibration test.
Product Application ►
1. Educational Learning Machine.
2. Car DVD.
3. Communication Equipments.
4. Handheld Devices.
5. Car Rearview Mirror and Data Recorder.
6. Medical Equipments.
7. Instrument.
8. Instrial Control Display.
 |
|
|
|
Specifications ►
RX035H-19
| Brand | Rogin |
| Series | Medium and Small Size LCD Display |
| Panel Size | 3.5inch |
| Model | RX035H-19 |
| Brightness | 300 |
| Resolution | 320(RGB) *480 dots |
| Interface | MCU |
| Display area(AA) | 48. 96 (H) * 73.44(V) mm |
| Overall size | 54.48*84.71*2.15 mm |
| Driver element | a-Si TFT active matrix |
| Display colors | 262K colors |
| Pixel arrangement | RGB vertical stripe |
| Pixel pitch | 0.153(H) *0.153(V)mm |
| Viewing angle | 12:00 o'clock |
| Drive IC | ILI9488 |
| Display mode | Transmissive/ Normally White |
| Operating temperature | -20~+70℃ |
| Storage temperature | -30~+80 ℃ |
