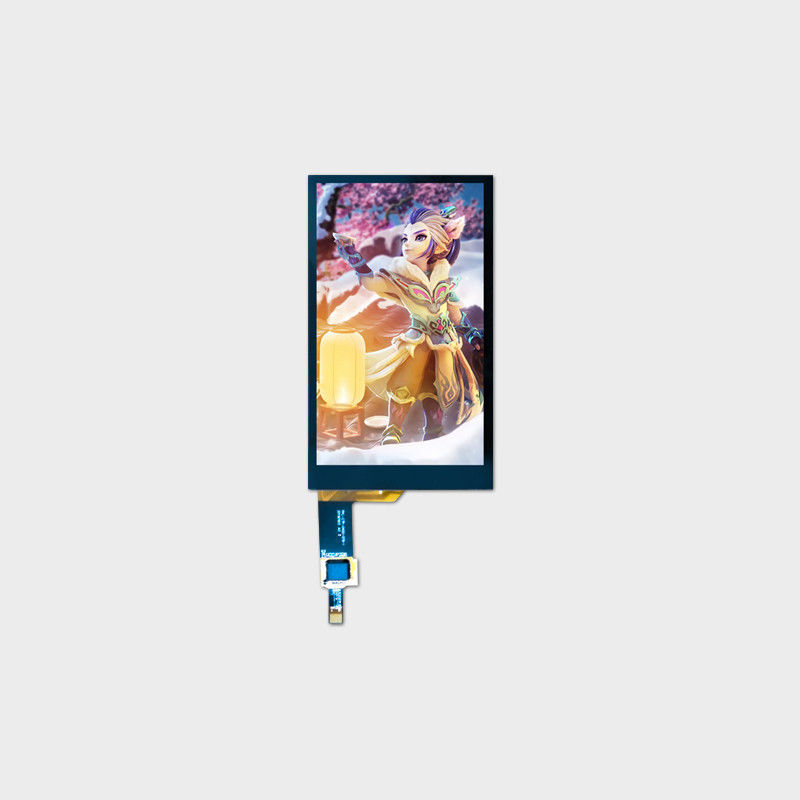

4.0 Inch Small LCD Display Screen 480*800 MIPI 200 Nits Display
Product Details
| Name | Small LCD Display Screen | Panel Size | 4.0" |
|---|---|---|---|
| Resolution | 480(RGB)*800 | Brightness | 200 (Typ.) |
| Active Area | 51.84*86.4mm | Outline Dimension | 57.14*97.05*2.25mm |
| Highlight | 4.0 Inch Small LCD Display Screen,Small LCD Display Screen 480*800,MIPI 200 Nits Display |
||
Product Description
4.0 inch Medium and Small LCD Display 480(RGB)*800 MIPI 200nits
Product Advantage ►
1. Thousand grade clean room, Cover 3000 m2 dust-free workshop.
2. Support small MOQ and LCD/FPC/BL/TP customization.
3. Customized convert board, RBG/LVDS/MIPI/EDP/ HDMI signal conversion.
4. Strict aging test and vibration test.
Product Application ►
1. Educational Learning Machine.
2. Car DVD.
3. Communication Equipments.
4. Handheld Devices.
5. Car Rearview Mirror and Data Recorder.
6. Medical Equipments.
7. Instrument.
8. Instrial Control Display.
 |
|
|
|
Specifications ►
RX040B-1700
| Brand | Rogin |
| Series | Medium and Small Size LCD Display |
| Panel Size | 4.0inch |
| Model | RX040B-1700 |
| Brightness | 200 cd/m2 |
| Resolution | 480(RGB) *800 dots |
| Interface | MIPI |
| Display area(AA) | 51.84*86.4mm |
| Overall size | 57.14*97.05*2.25mm |
| Driver element | a-Si TFT active matrix |
| Display colors | 262K colors |
| Pixel arrangement | RGB vertical stripe |
| Pixel pitch | 0. 108(H) *0.108(V) |
| Viewing angle | ALL |
| Drive IC | / |
| Display mode | Transmissive/ Normally Black |
| Operating temperature | -20~+70℃ |
| Storage temperature | -30~+80 ℃ |
